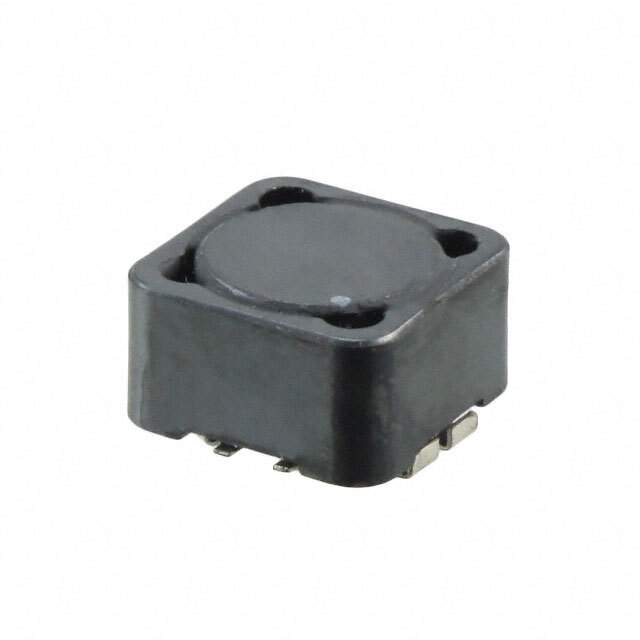

The PF0553.103NLT is a surface mount, shielded inductor array manufactured by Pulse Electronics Power.

• Series: PF0553NL series
• Package: Tape and reel
• Standard Package: 400
• Mounting: SMD (SMT) technology
• Tolerance: ±20%
• Height: 0.315 inches (8.00mm)
• Number of Coils: Two
• Connection: Can be connected in series or parallel
• Current Rating (Series): 3A
• Current Rating (Parallel): 6A
• Current Saturation (Series): 5.6A
• Current Saturation (Parallel): 11A
• DC Resistance (Series): 67mOhm max
• DC Resistance (Parallel): 17mOhm max
• Temperature Range: -40°C to 125°C
• Dimension: 0.492 inches L x 0.492 inches W (12.50mm x 12.50mm)
• ECCN: EAR99
