Same model may have multiple batches, images only for reference.

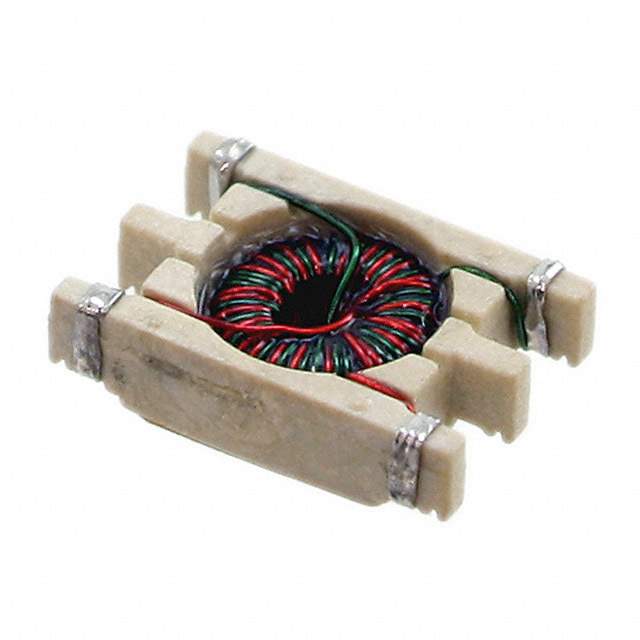

PE-68624NLT Real Image
Same model may have multiple batches, images only for reference.

PE-68624NLT

Part No PE-68624NLT
Manufacturer Pulse
Catalog Common Mode Chokes
Description COMMON MODE CHOKE 2LN SMD
Datasheet
PE-68624NLT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Pulse Electronics Corporation
Packaging Reel - TR
Status Active
Filter Type Signal Line
Number of Lines 2
DC Resistance (DCR) (Max) 400 mOhm
Mounting SMD (SMT)
Height (Max) 0.098" (2.49mm)
Dimension Vertical, 6 Flat Lead
Win Source Part Number 026662-PE-68624NLT
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PE-68624NLT CAD Model

Description

The Pulse Electronics Signal Line Filter is a high-performance filter that provides excellent EMI suppression for a wide range of applications.

  • Win Source Part Number: 026662-PE-68624NLT
  • Manufacturer: Pulse Electronics Corporation
  • Mounting: SMD (SMT)
  • Height: 0.098" (2.49mm)
  • Lines: 2
  • Maximum DC Resistance: 400 mOhm
  • Filter Type: Signal line
  • Category: Filters
  • Supply and Demand Status: Balanced
