Same model may have multiple batches, images only for reference.

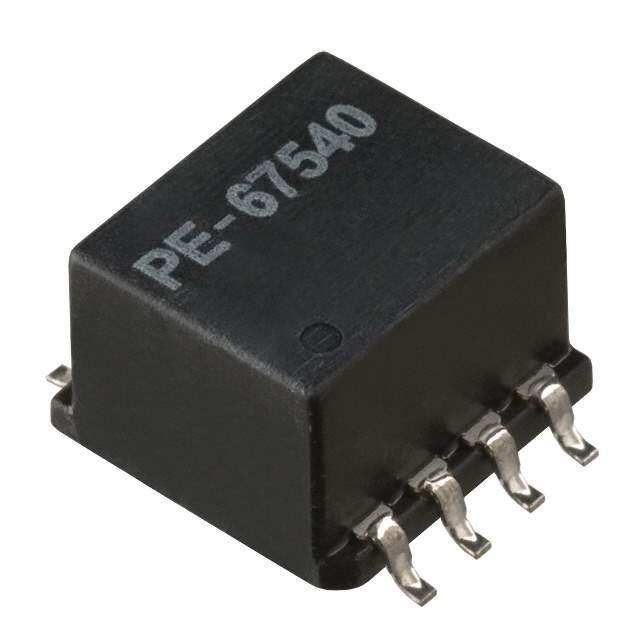

PE-67540T Real Image
Same model may have multiple batches, images only for reference.

PE-67540T

Part No PE-67540T
Manufacturer Pulse
Catalog Common Mode Chokes
Description COMMON MODE CHOKE 4LN SMD
Datasheet
PE-67540T Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Pulse Electronics Corporation
Packaging Reel - TR
Status Obsolete(EOL)
Filter Type Signal Line
Number of Lines 4
DC Resistance (DCR) (Max) 600 mOhm
Mounting SMD (SMT)
Height (Max) 0.350" (8.89mm)
Dimension Vertical, 8 Gull Wing
Win Source Part Number 045708-PE-67540T
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PE-67540T CAD Model

Description

The PE-67540T signal line filter from Pulse Electronics Corporation is a vertical, 8 gull wing component.

  • Height (Max): 0.350" (8.89mm)
  • Mounting Type: Surface-Mount Technology (SMT)
  • Component Orientation: Vertical
  • Termination Style: 8 Gull Wing
  • Lines: 4
  • Impedance/Inductance @ Frequency: None
  • DC Resistance (DCR) (Max): 600 mOhm
  • Packaging: Reel-TR
  • Product Status: Obsolete (EOL)
  • Popularity: Medium
  • Supply and Demand Status: Limited
  • Voltage Rating - DC: None
  • Current Rating (Max): None
  • Approvals: None
