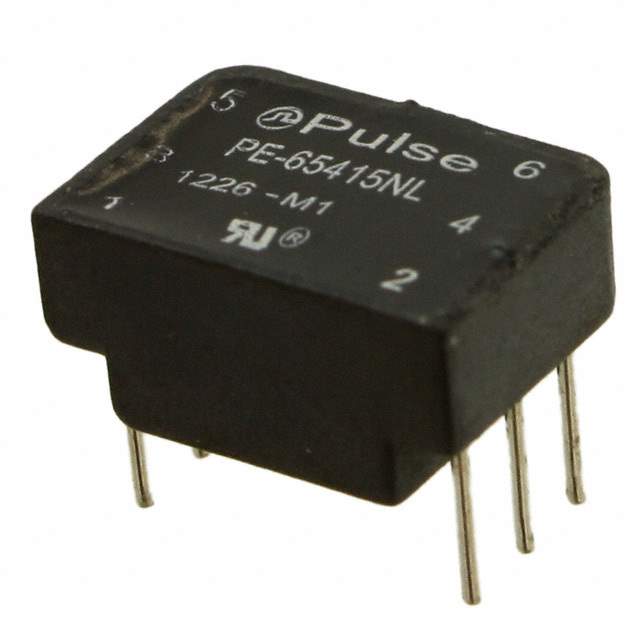

The PE-65415NL is a highly reliable and efficient Ethernet transformer module manufactured by Pulse Electronics. It's designed to provide signal isolation and impedance matching for Ethernet applications, ensuring robust data transmission and protection of sensitive circuitry. This component is particularly well-suited for use in networking equipment and communication devices where reliable performance is critical.

Applications

• 10/100/1000 Base-T Ethernet applications
• Network Interface Cards (NICs)
• Routers and Switches
• Industrial Ethernet
• Embedded Systems with Ethernet connectivity

Features

• Designed for 10/100/1000 Base-T Ethernet
• Meets IEEE 802.3 standards
• Provides robust signal isolation
• Optimized for low common mode emissions
• Surface mount package for easy assembly
• Wide operating temperature range
• RoHS compliant

Benefits

• Improved Signal Integrity: Ensures accurate and reliable data transmission, minimizing signal loss and distortion.
• Enhanced Electrical Isolation: Protects sensitive electronic components from voltage spikes and surges, preventing damage and ensuring system stability.
• Compliance with Industry Standards: Meets IEEE 802.3 specifications, guaranteeing compatibility with a wide range of Ethernet devices and networks.
• Simplified Manufacturing: The surface mount design facilitates automated assembly, reducing manufacturing costs and improving production efficiency.
• Reduced Electromagnetic Interference (EMI): Low common mode emissions minimize interference with other electronic components, improving overall system performance.
• Reliable Performance in Harsh Environments: The wide operating temperature range ensures stable operation in a variety of industrial and commercial settings.
