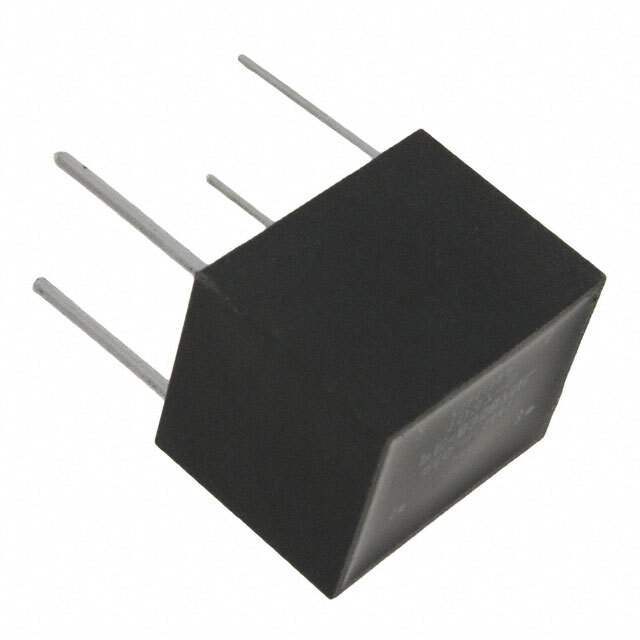

PE-63587NL

Part No PE-63587NL
Manufacturer Pulse
Catalog Current Sense Transformers
Description CURR SENSE XFMR 20A T/H
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Pulse Electronics
Category Transformers > Current Sense Transformers
Packaging Tray
Part Status Active
Frequency Range 20kHz ~ 200kHz
Type Invasive
Current Rating (Amps) 20 A
Inductance 20 mH
DC Resistance (DCR) 100Ohm Primary, 1.4Ohm Secondary
Mounting Type Through Hole
Ultra Librarian 3D Model Ultra Librarian PE-63587NL CAD Model

Description

20 A Current Sense Transformer 20kHz ~ 200kHz 100Ohm Primary, 1.4Ohm Secondary 20 mH Through Hole
