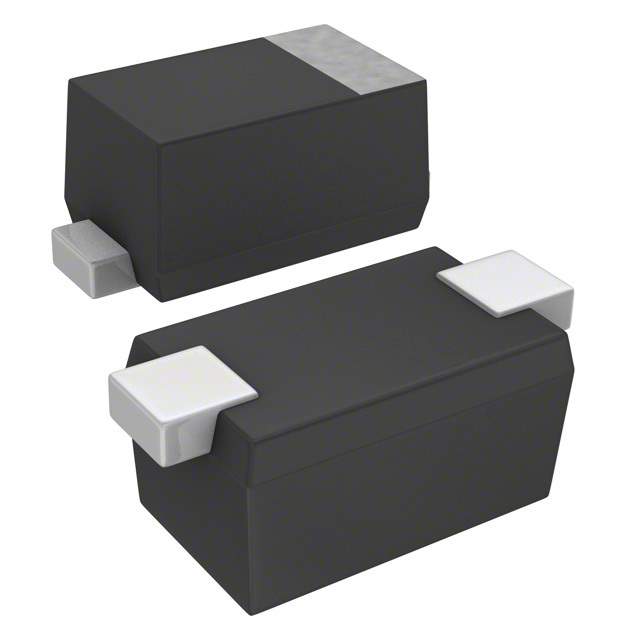

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Active
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 30V
Current - Average Rectified (Io) 100mA
Voltage - Forward (Vf) (Max) @ If 420mV @ 100mA
Reverse Recovery Time (trr) 1.3ns
Current - Reverse Leakage @ Vr 120μA @ 30V
Capacitance @ Vr, F 2.9pF @ 10V, 1MHz
Mounting SMD (SMT)
Case / Package SSSMini2-F4-B
Operating Temperature - Junction 125°C (Max)
Win Source Part Number 013806-DB2730800L
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Family Name DB27308
Introduction Date September 27, 2009
ECCN EAR99
Estimated EOL Date 2023
Quantity per package 10k pcs
Ultra Librarian 3D Model Ultra Librarian DB2730800L CAD Model

Description

DB2730800L

The DB2730800L is geared toward cutting-edge technological applications, offering superior performance attributes to support advanced systems.

  • Applications:
    • IoT devices
    • Renewable energy technologies
    • Advanced computing systems
    • Military-grade electronics
  • Features and Benefits:
    • Superior performance in high-demand applications.
    • Energy-efficient design supporting sustainable technology.
    • Compact and lightweight for easy integration.
    • Robust and durable under challenging conditions.
  • Additional Details: With its advanced capabilities, the DB2730800L serves as a critical component for future-forward applications, ensuring reliability and efficiency.
