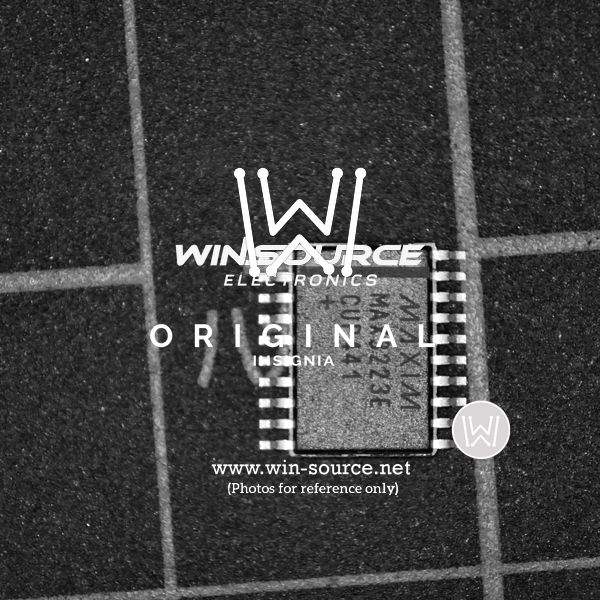

Maxim Integrated MAX3223ECUP+ RS-232 Interface IC

The Maxim Integrated MAX3223ECUP+ is a high-performance RS-232 interface IC designed to meet the requirements of battery-powered applications such as laptops, PDAs, and other handheld devices. This particular chip is part of the MAX3223E series and comes in a 20-pin TSSOP package, offering a robust serial communication interface for devices that require low-voltage and low-power operations.

This interface IC is capable of operating with a supply voltage range of 3.0V to 5.5V, which allows for flexible integration into various system designs. The MAX3223ECUP+ features a proprietary low-dropout transmitter output stage, delivering true RS-232 performance from a 3.0V to 5.5V supply with a dual charge pump. This charge pump requires only four small 0.1μF external capacitors, which reduces the overall footprint and component count on the PCB.

The device is equipped with two drivers and two receivers, supporting the full-duplex data communication often necessary in serial port applications. The MAX3223ECUP+ also includes a 1μA shutdown mode, which significantly reduces power consumption when the device is not in active use, making it ideal for portable and battery-operated equipment. In addition, the auto-power-down feature saves power without changes to the existing BIOS or operating system, by entering a low-power shutdown mode when the RS-232 cable is disconnected or the transmitters of the connected peripherals are off.

For added reliability, the MAX3223ECUP+ incorporates electrostatic discharge (ESD) protection exceeding ±15kV using the Human Body Model, protecting the device from the potential damages caused by static electricity. This level of protection ensures that the IC is robust against the harsh conditions found in industrial and commercial environments.

Overall, the Maxim Integrated MAX3223ECUP+ is a versatile and efficient solution for designers looking for a reliable RS-232 interface with low-voltage operation, minimal external components, and enhanced power-saving features. Its robust protection and small package make it an excellent choice for space-constrained applications requiring high-quality serial communication interfaces.
