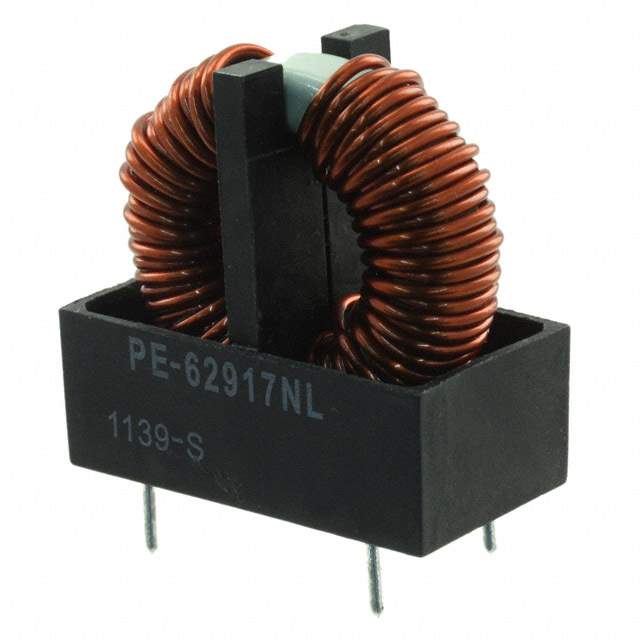

PE-62917NL Real Image
Same model may have multiple batches, images only for reference.

PE-62917NL

Part No PE-62917NL
Manufacturer Pulse
Catalog Common Mode Chokes
Description CMC 2MH 7.5A 2LN TH
Datasheet
PE-62917NL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Pulse Electronics Corporation
Packaging Tray
Status Active
Number of Lines 2
Inductance @ Frequency 2mH @ 1kHz
Current Rating (Max) 7.5A
DC Resistance (DCR) (Max) 20 mOhm
Temperature Range - Operating -40°C to 125°C
Mounting Through Hole
Height (Max) 1.510" (38.35mm)
Dimension Vertical, 4 PC Pin
Win Source Part Number 209763-PE-62917NL
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PE-62917NL CAD Model

Description

The Pulse Electronics Corporation 209763-PE-62917NL is a through-hole filter with a maximum DC resistance of 20 mOhm and a maximum current rating of 7.5A.

  • Manufacturer: Pulse Electronics Corporation
  • Part Number: 209763-PE-62917NL
  • Mounting Type: Through-hole
  • DC Resistance (DCR) (Max): 20 mOhm
  • Current Rating (Max): 7.5A
  • Inductance: 2mH @ 1kHz
  • Application: Filtering applications
  • Height: 1.510" (38.35mm)
  • Packaging: Tray
  • Approvals: Various applications
  • Temperature Range: -40°C to 125°C
  • Popularity: Popular
  • Supply and Demand Status: Limited
