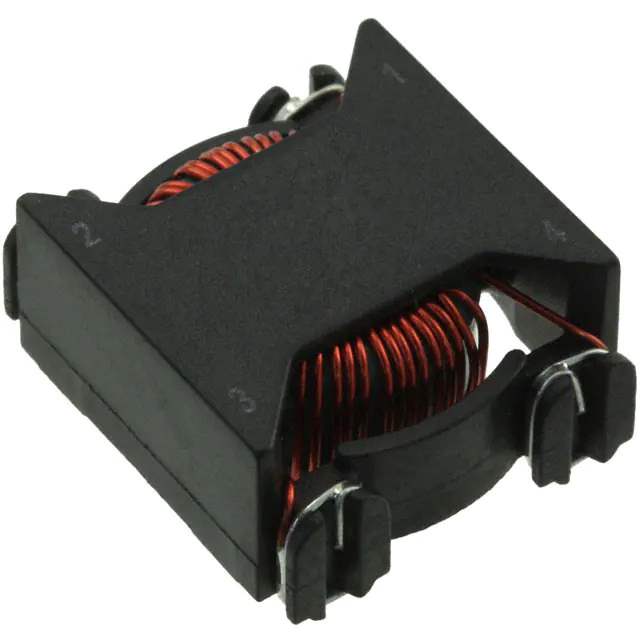

PE-53914NLT Real Image
Same model may have multiple batches, images only for reference.

PE-53914NLT

Part No PE-53914NLT
Manufacturer Pulse
Catalog Common Mode Chokes
Description CMC 500MA 2LN SMD
Datasheet
PE-53914NLT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Common Mode Chokes
Mfr Pulse
Package Tape & Reel
Product Status Active
Filter Type Power Line
Number of Lines 2
Current Rating (Max) 500mA
DC Resistance (DCR) (Max) 850mOhm
Voltage Rating - AC 250V
Temperature Range - Operating -40°C ~ 130°C
Mounting Type Surface Mount
Size / Dimension 0.645" L x 0.560" W (16.38mm x 14.22mm)
Height (Max) 0.350" (8.89mm)
Package / Case Horizontal, 4 PC Pad
Standard Package 200 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 845619-PE-53914NLT
Ultra Librarian 3D Model Ultra Librarian PE-53914NLT CAD Model

Description

The 845619-PE-53914NLT is a common mode choke filter used in electronic devices.

  • Category: Filters - Common Mode Chokes
  • Series: None
  • Package: Tape and Reel
  • Size (L x W): 0.645" L x 0.560" W (16.38mm x 14.22mm)
  • Voltage Rating: 250V
  • Maximum Current: 500mA
  • Mounting Type: Surface Mount
  • Height: 0.350" (8.89mm)
  • Lines: 2
  • DC Resistance: 850mOhm
  • Package/Case: Horizontal, 4 PC Pads
  • Operating Temperature: -40°C to 130°C
  • REACH: Unaffected
  • ECCN: EAR99
  • Product Status: Active
