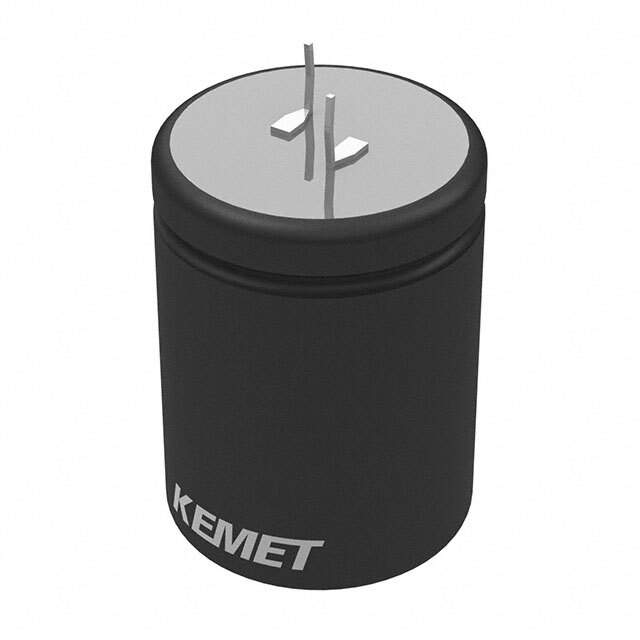

Same model may have multiple batches, images only for reference.

ALC70A151DC600

Name: ALC70A151DC600
Brand: Kemet
SKU: 1337898
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	ALC70A151DC600
Manufacturer	Kemet
Catalog	Aluminum Capacitors
Description	CAP ALUM 150UF 20% 600V SNAP / 150 µF 600 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 852.6mOhm @ 100Hz 15000 Hrs @ 85°C
Datasheet	ALC70A151DC600 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	KEMET
Series	ALC70
Package	Bulk
Capacitance	150 µF
Tolerance	±20%
Voltage - Rated	600 V
ESR (Equivalent Series Resistance)	852.6mOhm @ 100Hz
Lifetime @ Temp.	15000 Hrs @ 85°C
Temperature Range - Operating	-40°C ~ 85°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	1.6 A @ 100 Hz
Ripple Current @ High Frequency	3.46 A @ 10 kHz
Impedance	589 mOhms
Lead Spacing	0.394" (10.00mm)
Size / Dimension	1.378" Dia (35.00mm)
Height - Seated (Max)	1.457" (37.00mm)
Mounting Type	Through Hole
Package / Case	Radial, Can - Snap-In
Base Product Number	ALC70A
Standard Package	100
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0040
Win Source Part Number	1337898-ALC70A151DC600
Ultra Librarian 3D Model	Ultra Librarian ALC70A151DC600 CAD Model

Description

The ALC70A151DC600 is an aluminum electrolytic capacitor from KEMET.

Packaging: Bulk
Standard Package: 100
Capacitance: 150μF
Tolerance: ±20%
Rated Voltage: 600V
Impedance: 589mOhms
ESR: 852.6mOhm @ 100Hz
Ripple Current @ Low Frequency: 1.6A @ 100Hz
Ripple Current @ High Frequency: 3.46A @ 10kHz
Mounting Type: Through Hole
Lead Spacing: 0.394" (10.00mm)
Surface Mount Land Size: -
Diameter: 1.378" (35.00mm)
Seated Height: 1.457" (37.00mm)
Application: General Purpose
