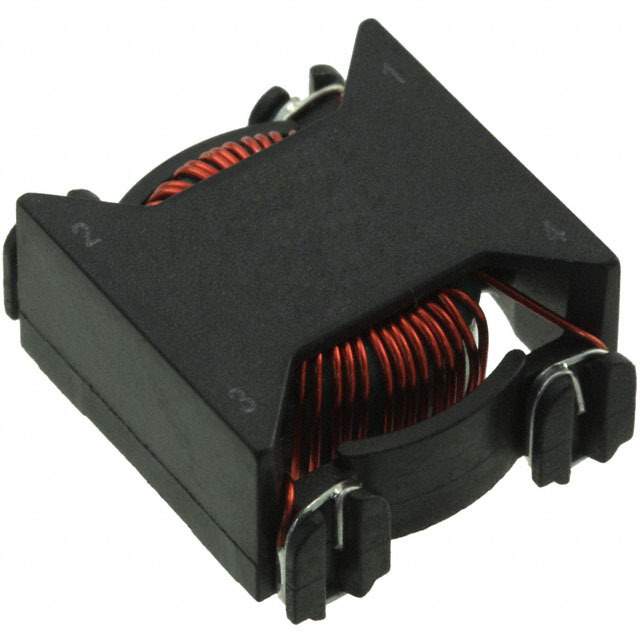

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Manufacturer Pulse Electronics
Packaging Tube
Product Status Obsolete
Filter Type Power Line
Number of Lines 2
Current Rating (Max) 500mA
DC Resistance (DCR) (Max) 850mOhm
Voltage Rating - AC 250V
Temperature Range - Operating -40°C ~ 130°C
Mounting Surface Mount
Size / Dimension 0.645" L x 0.560" W (16.38mm x 14.22mm)
Height (Max) 0.350" (8.89mm)
Case / Package Horizontal, 4 PC Pad
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Other Part Number PE53914
Standard Package 30
Win Source Part Number 1327564-PE-53914
Ultra Librarian 3D Model Ultra Librarian PE-53914 CAD Model

Description

The Pulse Electronics PE-53914 is a common mode choke filter for power line applications.

  • Application: power line
  • Filter Type: common mode choke
  • Voltage Rating: 250V
  • Current Rating: 500mA
  • Package: horizontal, 4 PC pad
  • Mounting Type: surface mount
  • Size: 0.645" L x 0.560" W (16.38mm x 14.22mm)
  • Height (Max): 0.350" (8.89mm)
  • Temperature Range: -40°C to 130°C
  • DC Resistance (DCR): 850mOhm
  • Product Status: obsolete
  • Supply and Demand: limited
  • RoHS Compliance: non-compliant
