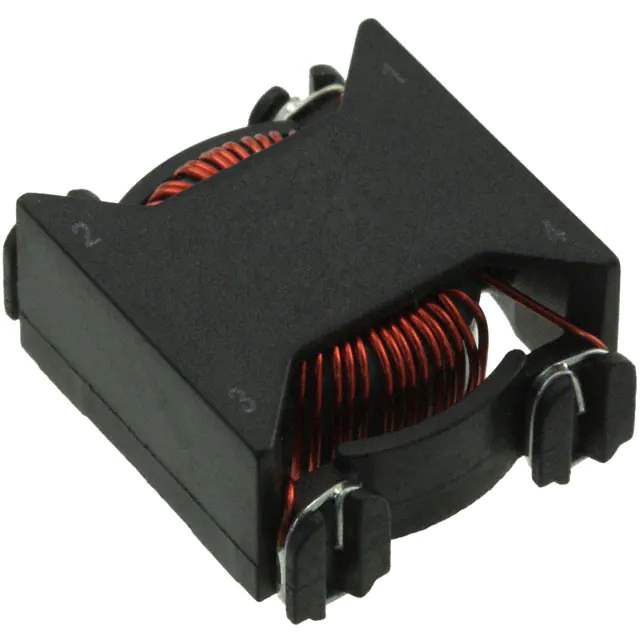

PE-53912NL Real Image
Same model may have multiple batches, images only for reference.

PE-53912NL

Part No PE-53912NL
Manufacturer Pulse
Catalog Common Mode Chokes
Description CMC 2.5A 2LN SMD
Datasheet
PE-53912NL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Common Mode Chokes
Mfr Pulse
Package Tube
Product Status Active
Filter Type Power Line
Number of Lines 2
Current Rating (Max) 2.5A
DC Resistance (DCR) (Max) 80mOhm
Voltage Rating - AC 250V
Temperature Range - Operating -40°C ~ 130°C
Mounting Type Surface Mount
Size / Dimension 0.770" L x 0.670" W (19.56mm x 17.02mm)
Height (Max) 0.390" (9.90mm)
Package / Case Horizontal, 4 PC Pad
Standard Package 30 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 654152-PE-53912NL
Ultra Librarian 3D Model Ultra Librarian PE-53912NL CAD Model

Description

The 654152-PE-53912NL is a common mode choke designed for power line filtering.

  • Application: Power Line Filtering
  • Packaging: Tube
  • Size/Dimension: 0.770" L x 0.670" W (19.56mm x 17.02mm)
  • Voltage Rating AC: 250V
  • Maximum Current Rating: 2.5A
  • Standard Package Quantity: 30 pieces
  • Height: 0.390" (9.90mm)
  • Mounting Type: Surface Mount
  • DC Resistance (DCR): 80mOhm max
  • Package/Case: Horizontal with 4 PC pad
  • Operating Temperature Range: -40°C to 130°C
  • REACH: Unaffected
  • ECCN: EAR99
