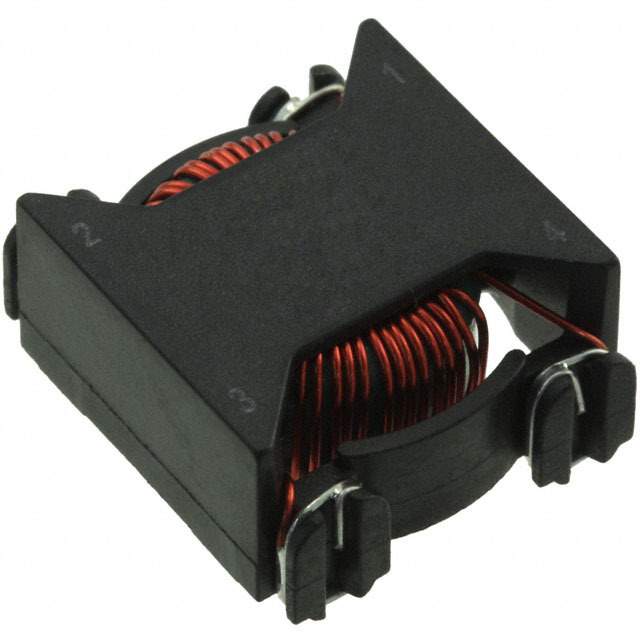

PE-53911NL Real Image
Same model may have multiple batches, images only for reference.

PE-53911NL

Part No PE-53911NL
Manufacturer Pulse
Catalog Common Mode Chokes
Description COMMON MODE CHOKE 1.5A 2LN SMD
Datasheet
PE-53911NL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Pulse Electronics Corporation
Packaging Reel - TR
Status Active
Number of Lines 2
Current Rating (Max) 1.5A
DC Resistance (DCR) (Max) 60 mOhm
Voltage Rating - AC 250V
Temperature Range - Operating -40°C to 130°C
Mounting SMD (SMT)
Height (Max) 0.350" (8.89mm)
Dimension Horizontal, 4 PC Pad
Win Source Part Number 045690-PE-53911NL
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PE-53911NL CAD Model

Description

The Pulse Electronics Corporation 045690-PE-53911NL is a filter with a voltage rating of 250V and a current rating (Max) of 1.5A.

  • Manufacturer: Pulse Electronics Corporation
  • Part Number: 045690-PE-53911NL
  • Voltage Rating: 250V
  • Current Rating (Max): 1.5A
  • Mounting Type: SMD (SMT)
  • Application: Filters
  • DC Resistance (DCR) (Max): 60 mOhm
  • Temperature Range: -40°C to 130°C
  • Supply and Demand Status: Limited
  • Package: Reel - TR
  • Height: 0.350" (8.89mm)
