Same model may have multiple batches, images only for reference.

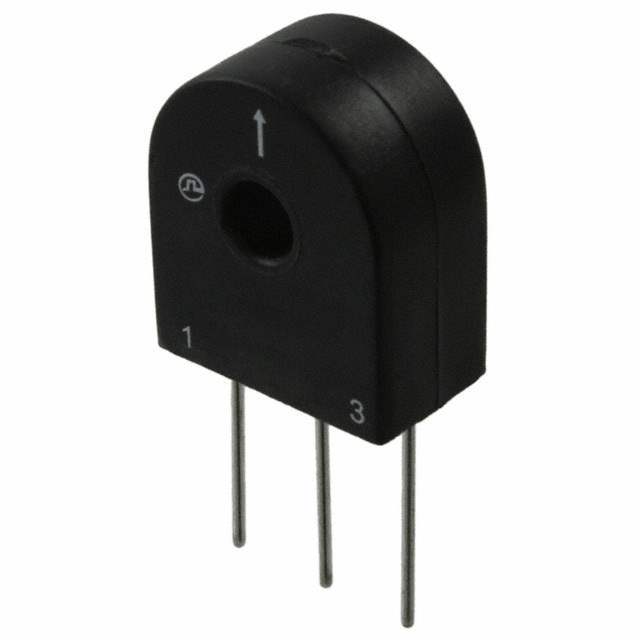

PE-51719NL Pulse Electronics
Same model may have multiple batches, images only for reference.

PE-51719NL

Part No PE-51719NL
Manufacturer Pulse
Catalog Current Sense Transformers
Description CURR SENSE XFMR 20A T/H
Datasheet
PE-51719NL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers >Current Sense Transformers
Manufacturer Pulse Electronics
Packaging Tray
Part Status Active
Frequency Range 20kHz ~ 200kHz
Type Non-Invasive (Solid Core)
Current Rating (Amps) 20 A
Inductance 80 mH
Size / Dimension 0.900" L x 0.700" W (22.86mm x 17.78mm)
Mounting Type Through Hole
Ultra Librarian 3D Model Ultra Librarian PE-51719NL CAD Model

Description

  • VDE Approved
  • Designed for switching power supply applications
  • Transformer meets EN62368-1 insulation requirements
  • Frequency range from 20kHz to 200kHz
