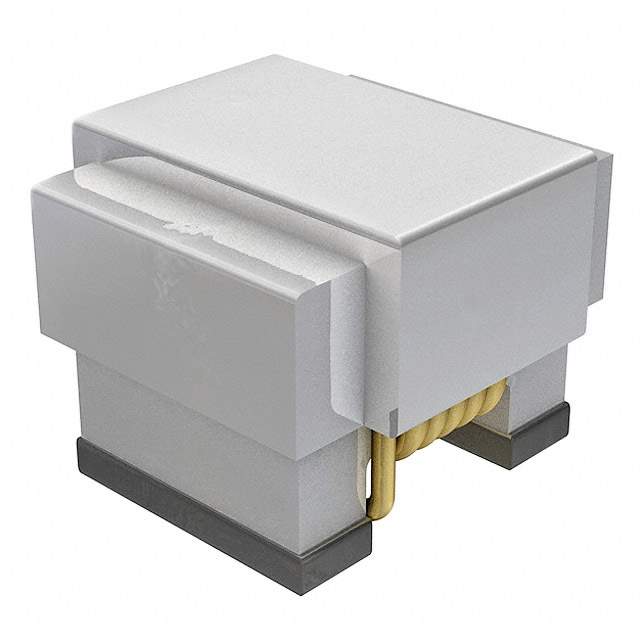

PE-0805CD120JTT

Name: PE-0805CD120JTT
Brand: Pulse
SKU: 1327555
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	PE-0805CD120JTT
Manufacturer	Pulse
Catalog	Fixed Inductors
Description	FIXED IND 11.9NH 600MA 150 MOHM / 11.9 nH Unshielded Drum Core, Wirewound Inductor 600 mA 150mOhm Max 0805 (2012 Metric)
Datasheet	PE-0805CD120JTT Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Manufacturer	Pulse Electronics
Packaging	Reel - TR
Type	Drum Core, Wirewound
Material - Core	Ceramic
Inductance	11.9 nH
Tolerance	±5%
Current Rating (Amps)	600 mA
Shielding	Unshielded
DC Resistance (DCR)	150mOhm Max
Q @ Freq	50 @ 500MHz
Frequency - Self Resonant	4GHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	250 MHz
Mounting	Surface Mount
Case / Package	0805 (2012 Metric)
Supplier Device Package	0805 (2012 Metric)
Size / Dimension	0.090" L x 0.066" W (2.29mm x 1.68mm)
Height - Seated (Max)	0.062" (1.58mm)
RoHS Status	RoHS Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.50.8000
Standard Package	2,000
Win Source Part Number	1327555-PE-0805CD120JTT
Ultra Librarian 3D Model	Ultra Librarian PE-0805CD120JTT CAD Model

Alternative Products

Description

The Pulse Electronics 1327555-PE-0805CD120JTT is a fixed inductor with a drum core and wirewound type.

Type: drum core, wirewound
Shielding: unshielded
Size / Dimension: 0.090 inches L x 0.066 inches W (2.29mm x 1.68mm)
Inductance: 11.9 nH
Tolerance: ±5%
Material-Core: ceramic
Q @ Freq: 50 @ 500MHz
Frequency-Self Resonant: 4GHz
DC Resistance (DCR): 150mOhm Max
Supplier Device Package: 0805 (2012 Metric)
Operating Temperature: -40°C ~ 125°C
Packaging: reel - TR
Standard Package: 2,000
ECCN: EAR99
HTSUS: 8504.50.8000
Current Rating (amps): 600 mA
Inductance Frequency-Test: 250 MHz
Current-Saturation (Isat): -
RoHS Compliant: true
