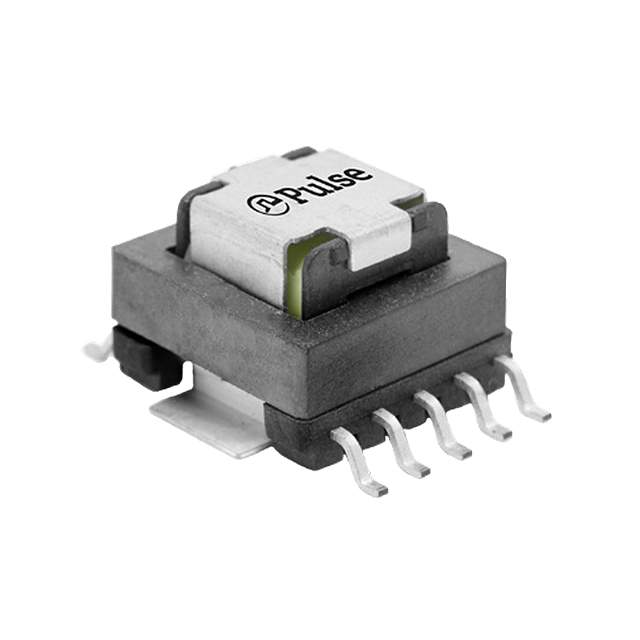

PB0026NLT Real Image
Same model may have multiple batches, images only for reference.

PB0026NLT

Part No PB0026NLT
Manufacturer Pulse
Catalog Current Sense Transformers
Description CURR SENSE XFMR 100:1 35A SMD / 35 A 100:1 Current Sense Transformer 50kHz ~ 500kHz 0.42mOhm Primary, 1.4Ohm Secondary 5.6 mH Surface Mount
Datasheet
PB0026NLT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers>Current Sense Transformers
Manufacturer Pulse Electronics
Packaging Reel - TR
Frequency Range 50kHz ~ 500kHz
Type Invasive
Current Rating (Amps) 35 A
Inductance 5.6 mH
DC Resistance (DCR) 0.42mOhm Primary, 1.4Ohm Secondary
Mounting Surface Mount
Size / Dimension 0.591" L x 0.784" W (15.00mm x 19.91mm)
Height - Seated (Max) 0.394" (10.00mm)
Termination Style Gull Wing
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Other Part Number 553-2081-1,553-2081-2,PB0026NLT-ND,553-2081-6
Standard Package 200
Win Source Part Number 1331039-PB0026NLT
Ultra Librarian 3D Model Ultra Librarian PB0026NLT CAD Model

Description

The Pulse Electronics PB0026NLT is a current sense transformer designed for invasive applications.

  • Frequency Range: 50kHz to 500kHz
  • Current Rating: 35A
  • Mounting Type: Surface mount
  • Primary DC Resistance: 0.42mOhm
  • Secondary DC Resistance: 1.4Ohm
  • ROHS Compliant: Yes
  • Packaging: Reel package
  • Applications: Invasive applications
