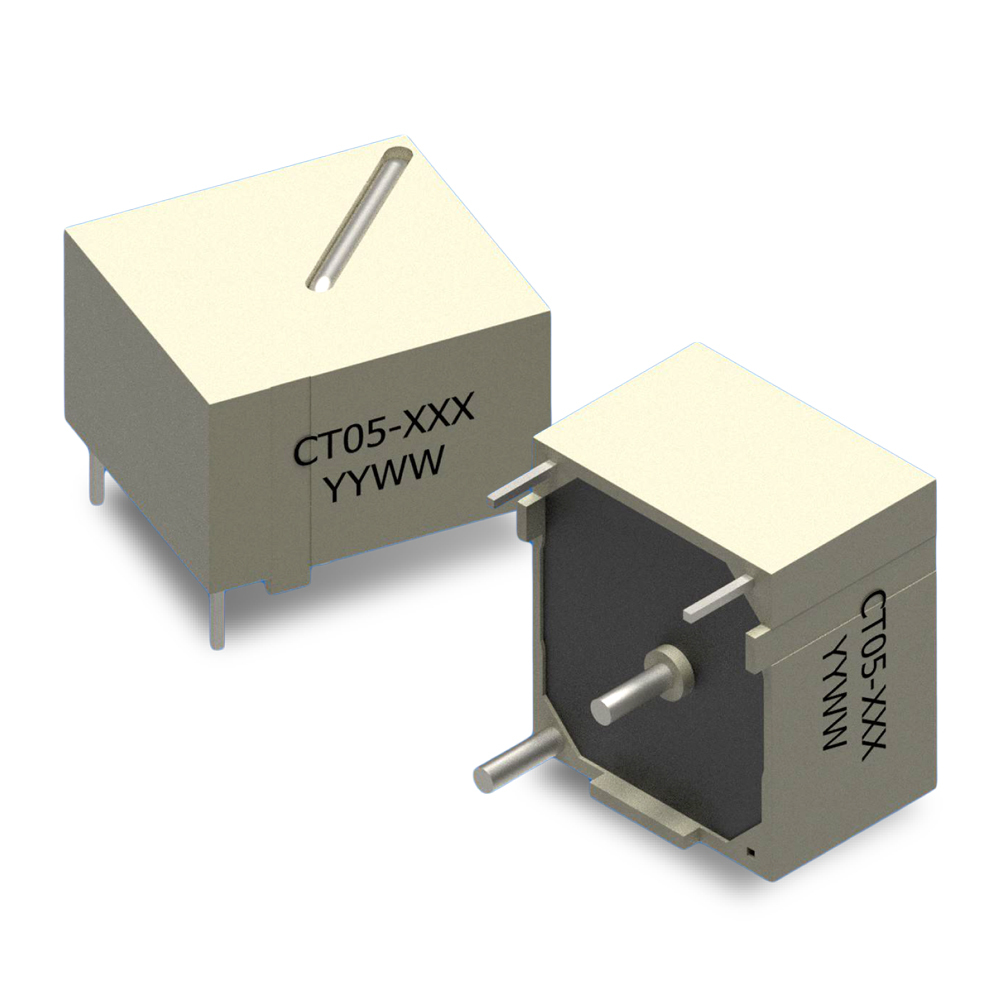

CST306-2T

Part No CST306-2T
Manufacturer Triad Magnetics
Catalog Current Sense Transformers
Description CURR SENSE XFMR 25A T/H
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Frequency Range 20kHz ~ 200kHz
Type Non-Invasive (Solid Core)
Current Rating (Amps) 25 A
Inductance 14 mH
ET (Volt-Time) 1000VµS
Current Ratio 100CT:1
DC Resistance (DCR) 1.55Ohm Max
Mounting Type Through Hole
Size / Dimension 0.690" L x 0.385" W (17.53mm x 9.78mm)
Height - Seated (Max) 0.915" (23.24mm)
Termination Style PC Pin
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1545062-CST306-2T
Ultra Librarian 3D Model Ultra Librarian CST306-2T CAD Model
