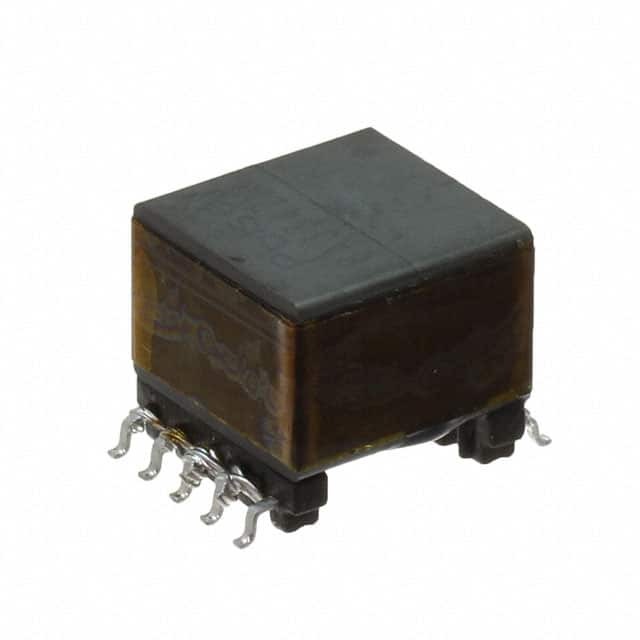

PA3342NL
Same model may have multiple batches, images only for reference.

PA3342NL

Part No PA3342NL
Manufacturer Pulse
Catalog Pulse Transformers
Description PULSE XFMR 90UH / 90μH Pulse Transformer Surface Mount
Datasheet
PA3342NL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers - Pulse Transformers
Mfr Pulse
Package Tray
Product Status Active
Inductance 90µH
Mounting Type Surface Mount
Size / Dimension 0.551" L x 0.516" W (14.00mm x 13.11mm)
Height - Seated (Max) 0.485" (12.32mm)
Temperature Range - Operating -40°C ~ 130°C
Standard Package 60 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 888517-PA3342NL
Ultra Librarian 3D Model Ultra Librarian PA3342NL CAD Model

Description

The 888517-PA3342NL is a pulse transformer used in transformer applications manufactured by Pulse.

  • Application: Transformer
  • Mounting Type: Surface Mount
  • Size: 0.551" L x 0.516" W (14.00mm x 13.11mm)
  • Inductance: 90µH
  • Seated Height: 0.485" (12.32mm)
  • Packaging: Tray
  • Standard Package: 60 pcs
  • Product Status: Active
  • Operating Temperature: -40°C to 130°C
  • ECCN: EAR99
