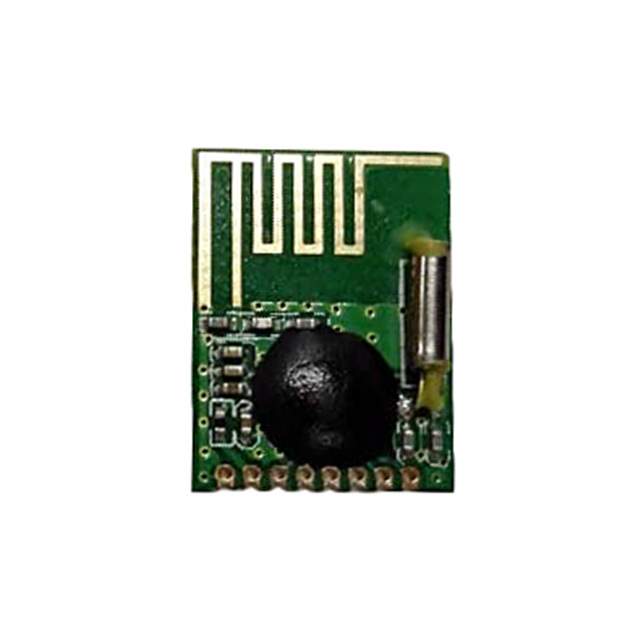

RFM75-S Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Manufacturer RF Solutions
Packaging Bulk
RF Family/Standard General ISM > 1GHZ
Modulation GFSK
Frequency 2.4GHz ~ 2.483GHz
Data Rate 2Mbps
Power - Output 4dBm
Sensitivity -96dBm
Serial Interfaces SPI
Antenna Type Integrated, Trace
Supply Voltage (V) 1.9V ~ 3.6V
Current - Receiving 16.5mA
Current - Transmitting 18mA
Mounting Style SMD
Temperature Range - Operating -40°C ~ 85°C
Manufacturer Package Module
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Popularity Low
Supply and Demand Status Limited
Win Source Part Number 814204-RFM75-S
Ultra Librarian 3D Model Ultra Librarian RFM75-S CAD Model

Description

The RF Solutions RFM75-S is a module that operates in a frequency range of 2.4GHz to 2.483GHz.

  • Data Rate: 2Mbps
  • Antenna: Integrated Trace Antenna
  • Power Output: 4dBm
  • Sensitivity: -96dBm
  • Modulation: GFSK
  • Interface: SPI Serial
  • Transmitting Current: 18mA
  • Receiving Current: 16.5mA
  • Operating Temperature Range: -40°C to 85°C
  • Supply and Demand Status: Limited
  • Manufacturer Pack Quantity: 1
  • MSL Level: 1 (Unlimited)
  • Supply Voltage: 1.9V to 3.6V
