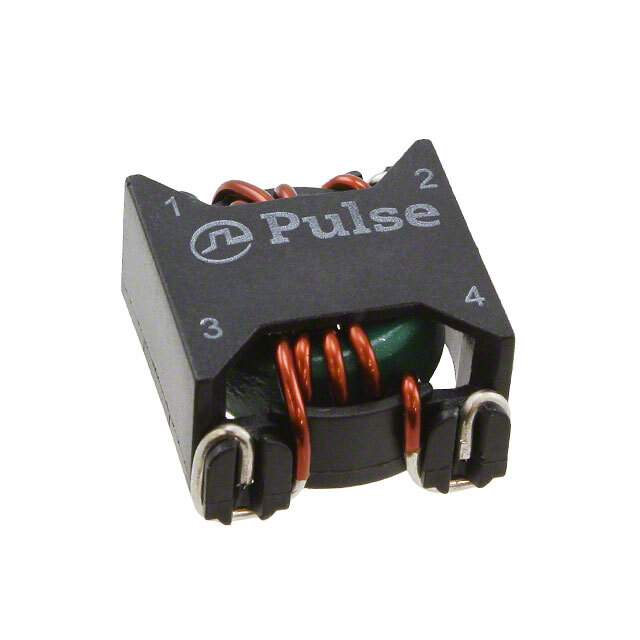

PA2756NL Real Image
Same model may have multiple batches, images only for reference.

PA2756NL

Part No PA2756NL
Manufacturer Pulse
Catalog Common Mode Chokes
Description CMC 8A 2LN SMD
Datasheet
PA2756NL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number 300000208-PA2756NL
Manufacturer Pulse Electronics
Category Filters- Common Mode Chokes
Package Tube
Operating Temperature -40°C ~ 130°C
Mounting Type Surface Mount
Package / Case Horizontal, 4 PC Pad
Size / Dimension 0.670" L x 0.770" W (17.02mm x 19.56mm)
Product Status Active
Ultra Librarian 3D Model Ultra Librarian PA2756NL CAD Model

Description

The Pulse Electronics Common Mode Choke is a filter categorized under Filters- Common Mode Chokes.

  • Packaging: Tube
  • Size / Dimension: 0.670" L x 0.770" W (17.02mm x 19.56mm)
  • Operating Temperature: -40°C ~ 130°C
  • Mounting Type: Surface Mount
  • Package / Case: Horizontal, 4 PC Pad
  • Product Status: Active
