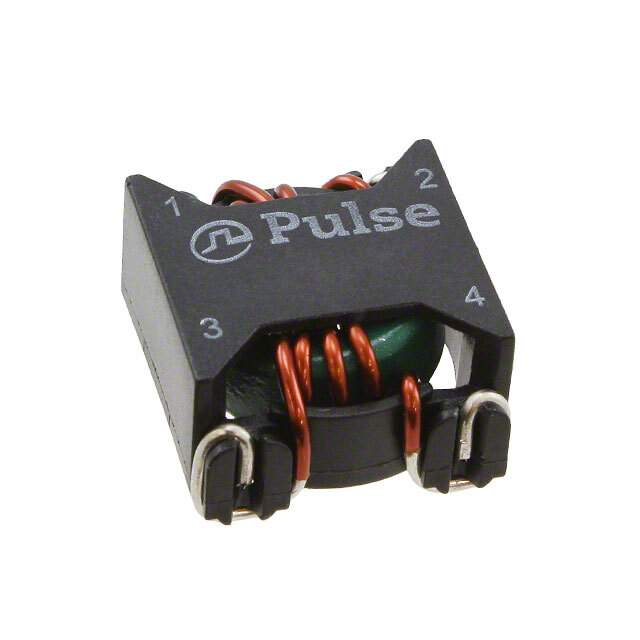

PA2753NL Real Image
Same model may have multiple batches, images only for reference.

PA2753NL

Part No PA2753NL
Manufacturer Pulse
Catalog Common Mode Chokes
Description CMC 12.5A 2LN SMD
Datasheet
PA2753NL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number 2000978-PA2753NL
Win Source Part Number Cross
Manufacturer Pulse Electronics
Category Filters Common Mode Chokes
Package Tube
Operating Temperature -40°C ~ 130°C
Mounting Type Surface Mount
Package / Case Horizontal, 4 PC Pad
Ultra Librarian 3D Model Ultra Librarian PA2753NL CAD Model

Description

The common mode chokes from Pulse Electronics are designed to provide filtering and noise suppression in electronic circuits. Pulse Electronics common mode chokes have a horizontal, 4 PC pad package/case and a surface mount mounting type.

  • Mounting Type: Surface Mount
  • Package / Case: Horizontal, 4 PC Pad
  • Packaging: Tube
  • Temperature - Operating: -40°C ~ 130°C
  • Type: Common Mode Chokes
