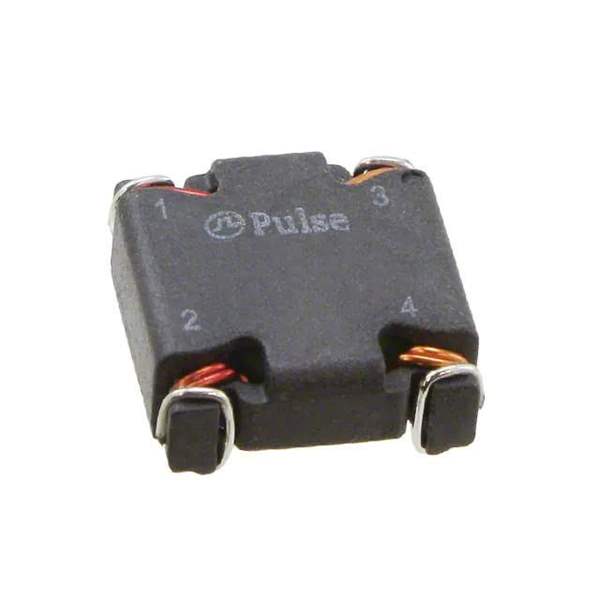

PA2743NL Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Filters - Common Mode Chokes
Mfr Pulse
Package Tube
Product Status Active
Number of Lines 2
Current Rating (Max) 3.3A
DC Resistance (DCR) (Max) 18mOhm
Temperature Range - Operating -40°C ~ 130°C
Mounting Type Surface Mount
Size / Dimension 0.500" L x 0.500" W (12.70mm x 12.70mm)
Height (Max) 0.220" (5.60mm)
Package / Case Horizontal, 4 PC Pad
Standard Package 40 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 849158-PA2743NL
Ultra Librarian 3D Model Ultra Librarian PA2743NL CAD Model

Description

The 849158-PA2743NL is a common mode choke filter designed for electronic components.

  • Package: tube
  • Size: 0.500" L x 0.500" W (12.70mm x 12.70mm)
  • Maximum Current: 3.3A
  • DC Resistance (DCR): 18mOhm maximum
  • Mounting Type: surface mount
  • Temperature Range: -40°C to 130°C
  • Product Status: active
  • Manufacturer: Pulse
