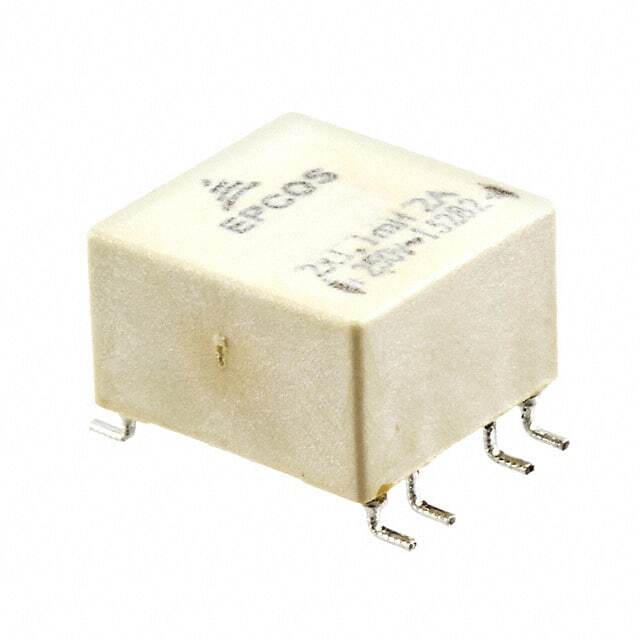

B82720S2202N040

Name: B82720S2202N040
Brand: EPCOS (TDK)
SKU: 1136278
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	B82720S2202N040
Manufacturer	EPCOS (TDK)
Catalog	Common Mode Chokes
Description	CMC 1.1MH 2A 2LN SMD / 1.1 mH @ 10 kHz 2 Line Common Mode Choke Surface Mount 2A DCR 65mOhm (Typ)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Filters>Common Mode Chokes
Mfr	EPCOS - TDK Electronics
Series	B82720
Package	Tape & Reel (TR),Cut Tape (CT)
Filter Type	Power Line
Number of Lines	2
Inductance @ Frequency	1.1 mH @ 10 kHz
Current Rating (Max)	2A
DC Resistance (DCR) (Max)	65mOhm (Typ)
Voltage Rating - AC	250V
Temperature Range - Operating	-40°C ~ 125°C
Mounting	SMD (SMT)
Dimension	0.571" L x 0.524" W (14.50mm x 13.30mm)
Height (Max)	0.421" (10.70mm)
Package / Case	Horizontal, 8 Gull Wing
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8548.00.0000
Other Names	B82720S2202N40-ND,495-5723,495-5723-2,495-5723-ND,495-5723-1,B82720S2202N 40,B82720S2202N40
Standard Package	250
Win Source Part Number	1136278-B82720S2202N040
Ultra Librarian 3D Model	Ultra Librarian B82720S2202N040 CAD Model

Description

The B82720S2202N040 is a common mode choke filter manufactured by EPCOS - TDK Electronics.

Voltage Rating: 250V
Current Rating: 2A
Application: power line applications
Standard Package: 250
Packaging: tape and reel or cut tape
Package/Case: horizontal, 8 gull wing
