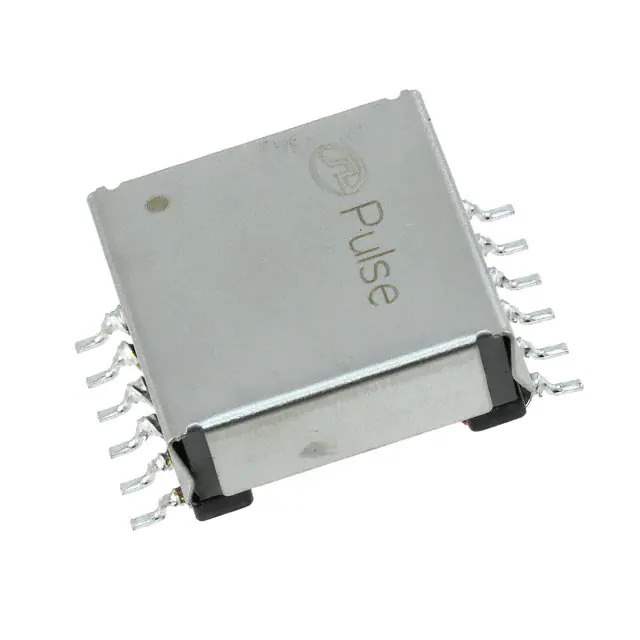

PA1837NL Real Image
Same model may have multiple batches, images only for reference.

PA1837NL

Part No PA1837NL
Manufacturer Pulse
Catalog Pulse Transformers
Description PULSE XFMR 4.5UH
Datasheet
PA1837NL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers - Pulse Transformers
Mfr Pulse
Package Tray
Product Status Active
Inductance 4.5µH
Mounting Type Surface Mount
Size / Dimension 0.860" L x 1.150" W (21.84mm x 29.21mm)
Height - Seated (Max) 0.450" (11.43mm)
Temperature Range - Operating -40°C ~ 125°C
Standard Package 45 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 652349-PA1837NL
Ultra Librarian 3D Model Ultra Librarian PA1837NL CAD Model

Description

The 652349-PA1837NL is an active pulse transformer designed for various applications.

  • Product Category: transformers - pulse transformers
  • Packaging: Tray
  • Size: 0.860" L x 1.150" W (21.84mm x 29.21mm)
  • Transformer Type: undefined
  • Inductance: 4.5μH
  • Height (Max): 0.450" (11.43mm)
  • Standard Package Quantity: 45 pcs
  • Mounting Type: Surface Mount
  • Operating Temperature: -40°C ~ 125°C
  • REACH: Unaffected
  • ECCN: EAR99
