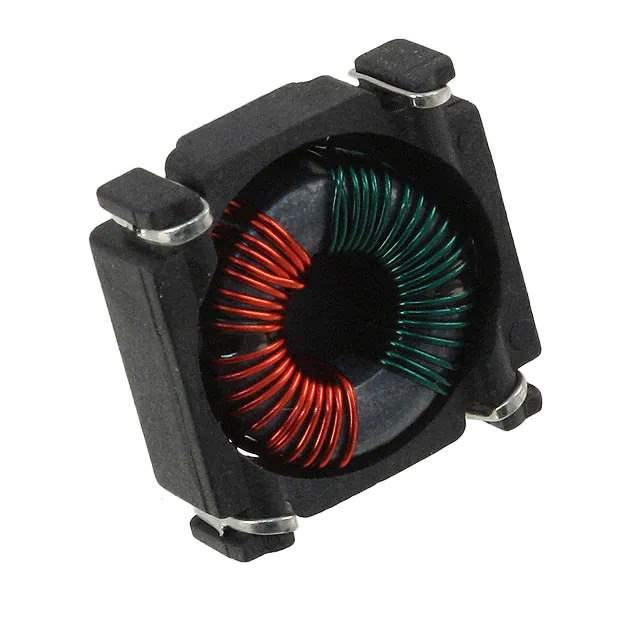

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Filters - Common Mode Chokes
Mfr Pulse
Package Tube
Product Status Obsolete
Filter Type Power Line
Number of Lines 2
Current Rating (Max) 1.63A
DC Resistance (DCR) (Max) 110mOhm
Temperature Range - Operating -40°C ~ 120°C
Mounting Type Surface Mount
Size / Dimension 0.500" L x 0.500" W (12.70mm x 12.70mm)
Height (Max) 0.220" (5.59mm)
Package / Case Horizontal, 4 PC Pad
Standard Package 35 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 651418-P0473
Ultra Librarian 3D Model Ultra Librarian P0473 CAD Model

Description

The 651418-P0473 is a common mode choke filter from Pulse.

  • Series: Not specified
  • Packaging: Tube
  • Size/Dimension: 0.500" L x 0.500" W (12.70mm x 12.70mm)
  • Current Rating (Max): 1.63A
  • Standard Package: 35 pieces
  • Filter Type: Power line
  • Height (Max): 0.220" (5.59mm)
  • Mounting Type: Surface mount
  • Package/Case: Horizontal, 4 PC pad
  • Temperature Range: -40°C to 120°C
  • MSL Level: 1 (unlimited)
  • REACH Status: Unaffected
  • HTSUS Code: 8504.50.8000
  • Status: Obsolete
