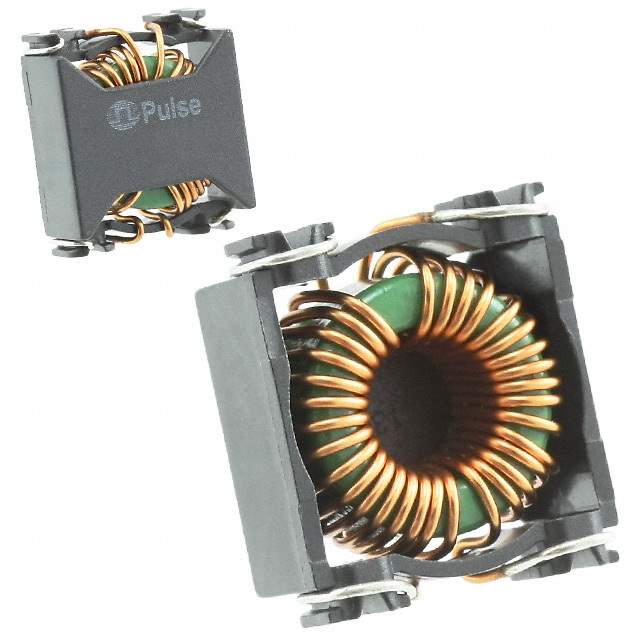

P0422NL Real Image
Same model may have multiple batches, images only for reference.

P0422NL

Part No P0422NL
Manufacturer Pulse
Catalog Common Mode Chokes
Description CMC 4.7A 2LN SMD
Datasheet
P0422NL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Estimated Pruduction Lead Time 15 Weeks
Features 2 Line Common Mode Choke Surface Mount 4.7A DCR 40mOhm
Manufacturer Pulse
Package Tube
Operating Temperature Range -40°C ~ 120°C
Mounting Surface Mount
Package Horizontal, 4 PC Pad
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.90.0100
Other Part Number 553-1640-5, P0422NL-ND
Quantity per package 30
Popularity High
Supply and Demand Status Balance
Win Source Part Number 929746-P0422NL
Ultra Librarian 3D Model Ultra Librarian P0422NL CAD Model

Description

The Pulse 929746-P0422NL is a 2 line common mode choke surface mount with a 4.7A DCR 40mOhm.

  • Package: horizontal, 4 PC pad
  • Mounting Type: surface mount
  • Application: filter
  • Market Popularity: high
