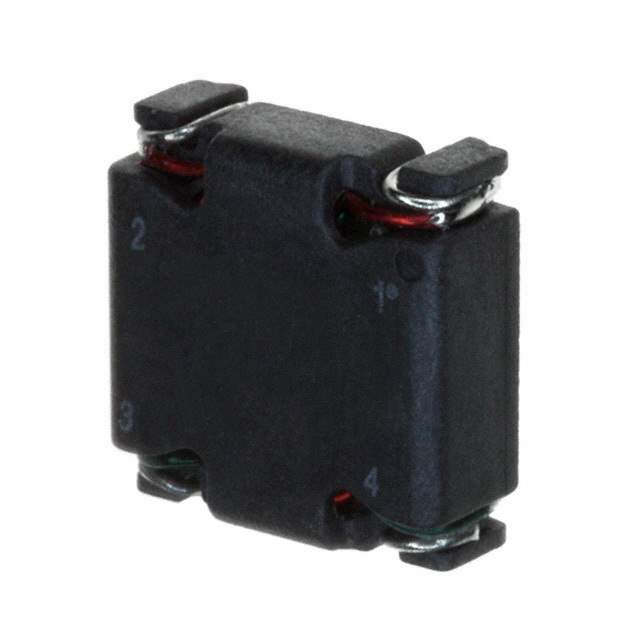

P0174NL Real Image1 P0174NL Real Image2
Same model may have multiple batches, images only for reference.
P0174NL Real Image1 P0174NL Real Image2
P0174NL Real Image1 P0174NL Real Image2
Same model may have multiple batches, images only for reference.

P0174NL

Part No P0174NL
Manufacturer Pulse
Catalog Arrays, Signal Transformers
Description INDUCT ARRAY 2 COIL 2.2UH SMD / Unshielded 2 Coil Inductor Array 8.75 µH Inductance - Connected in Series 2.2 µH Inductance - Connected in Parallel 7.6mOhm Max DC Resistance (DCR) - Parallel 8.3 A Nonstandard
Datasheet
P0174NL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Arrays, Signal Transformers
Mfr Pulse
Series Polecat
Package Tube
Number of Coils 2
Inductance - Connected In Parallel 2.2 µH
Inductance - Connected In Series 8.75 µH
Tolerance ±10%
Current Rating - Parallel 8.3 A
Current Rating - Series 4.16 A
DC Resistance (DCR) - Parallel 7.6mOhm Max
DC Resistance (DCR) - Series 32mOhm Max
Shielding Unshielded
Ratings -
Temperature Range - Operating -40°C ~ 130°C
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.500" L x 0.500" W (12.70mm x 12.70mm)
Height 0.215" (5.46mm)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Standard Package 40 pcs
Win Source Part Number 1383111-P0174NL
Ultra Librarian 3D Model Ultra Librarian P0174NL CAD Model

Description

The 1383111-P0174NL is an inductor coil choke from the Polecat series by Pulse.

  • Package: Tube
  • Shielding: Unshielded
  • Size: 0.500" L x 0.500" W (12.70mm x 12.70mm)
  • Tolerance: ±10%
  • Current Rating (Parallel): 8.3A (Max)
  • Current Rating (Series): 4.16A (Max)
  • DC Resistance (DCR, Parallel): 7.6mOhm (Max)
  • DC Resistance (DCR, Series): 32mOhm (Max)
  • Mounting Type: Surface Mount
  • Operating Temperature: -40°C to 130°C
