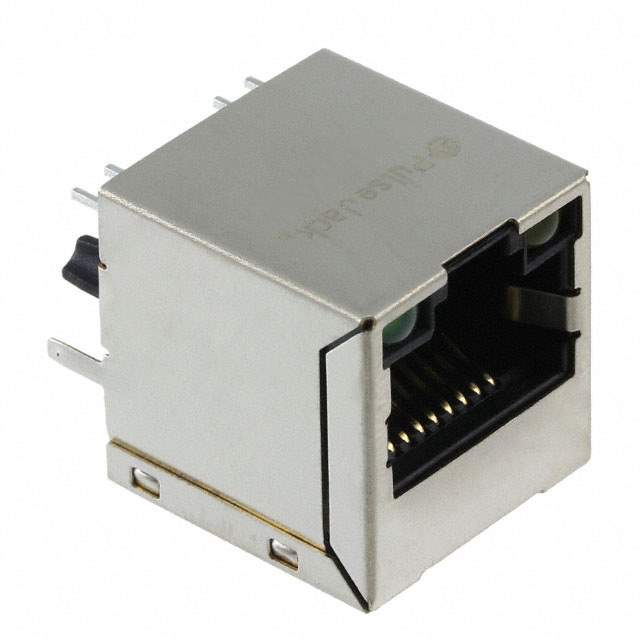

JXD2-0010NL

Part No JXD2-0010NL
Manufacturer Pulse
Catalog Modular Connectors
Description CONN JACK 1PORT 100 BASE-TX PCB / 1 Port RJ45Through Hole 10/100 Base-TX, AutoMDIX
Datasheet
JXD2-0010NL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Modular Connectors>Modular Connector Jacks With Magnetics
Manufacturer Pulse Electronics
Packaging Tray
Product Status Obsolete
Connector Type RJ45
Number of Ports 1
Number of Rows 1
Applications 10/100 Base-TX, AutoMDIX
Mounting Through Hole
Orientation Vertical
Termination Solder
Height Above Board 0.663" (16.85mm)
LED Color Green - Yellow
Number of Cores per Jack 4
Shielding Shielded
Features Board Guide
Tab Direction User Selectable
Contact Material Copper Alloy
Contact Finish Gold
Temperature Range - Operating -40°C ~ 85°C
Contact Finish Thickness 30.0µin (0.76µm)
Shield Material Brass
Housing Material Thermoplastic
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.8000
Other Part Number -JXD2-0010NL,JXD2-0010NL-ND,553-3269
Standard Package 50
Win Source Part Number 1333922-JXD2-0010NL
Ultra Librarian 3D Model Ultra Librarian JXD2-0010NL CAD Model

Description

The Pulse Electronics modular connector jack with magnetics is a shielded component with a vertical orientation.

  • Connector Type: RJ45
  • Termination: Solder
  • Number of Rows: 1
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0µin (0.76µm)
  • Contact Material: Copper alloy
  • Height Above Board: 0.663" (16.85mm)
  • Housing Material: Thermoplastic
  • Number of Ports: 1
  • Standard Package: 50
  • LED Color: Green-yellow
  • Temperature Range: -40°C to 85°C
  • Compliance: RoHS compliant
  • Package: Tray package
