Same model may have multiple batches, images only for reference.

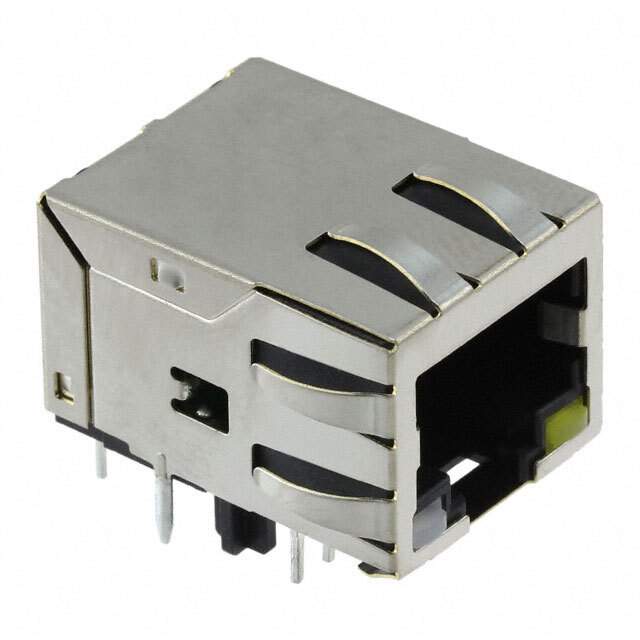

JP006821UNL Real Image
Same model may have multiple batches, images only for reference.

JP006821UNL

Part No JP006821UNL
Manufacturer Pulse
Catalog Modular Connectors
Description CONN JACK 1PORT 100 BASE-TX PCB / 1 Port RJ45Through Hole 10/100 Base-TX, AutoMDIX
Datasheet
JP006821UNL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Modular Connectors>Modular Connector Jacks With Magnetics
Manufacturer Pulse Electronics
Packaging Tray
Connector Type RJ45
Number of Ports 1
Number of Rows 1
Applications 10/100 Base-TX, AutoMDIX
Mounting Through Hole
Orientation 90° Angle (Right)
Termination Solder
Height Above Board 0.550" (13.97mm)
LED Color Green, Orange - Yellow
Number of Cores per Jack 4
Shielding Shielded, EMI Finger
Features Board Guide
Tab Direction Up
Contact Material Phosphor Bronze
Contact Finish Gold
Temperature Range - Operating 0°C ~ 70°C
Contact Finish Thickness 15.0µin (0.38µm)
Shield Material Brass
Housing Material Thermoplastic
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 25
Win Source Part Number 1333885-JP006821UNL
Ultra Librarian 3D Model Ultra Librarian JP006821UNL CAD Model

Description

The Pulse Electronics 1333885-JP006821UNL is a modular connector jack with magnetics that is designed for high-performance networking applications.

  • Shielding: Shielded and EMI finger
  • Termination: Soldered
  • Orientation: 90° angle (right)
  • Port: Single
  • Cores per Jack: 4
  • Applications: 10/100 Base-TX and AutoMDIX
  • Material: Thermoplastic
  • Height Above Board: 0.550" (13.97mm)
  • LED Color: Green and orange-yellow
  • Package: Tray
  • Temperature Range: 0°C to 70°C
  • RoHS Compliant: Yes
