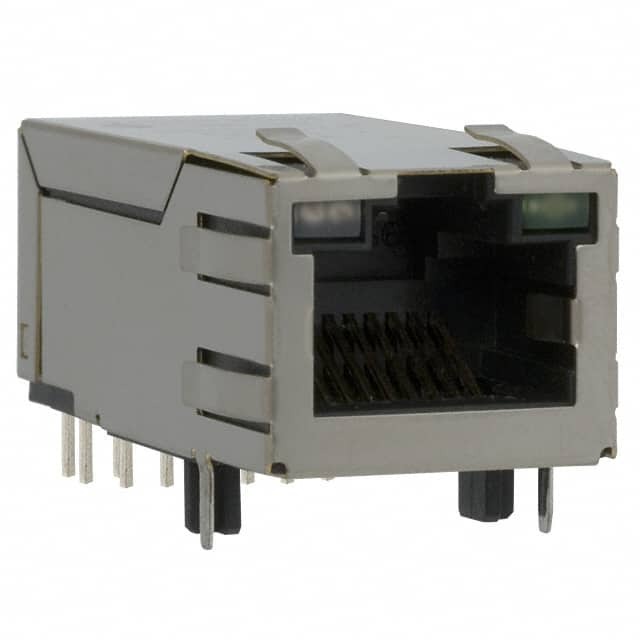

JK0-0016NL
Same model may have multiple batches, images only for reference.

JK0-0016NL

Part No JK0-0016NL
Manufacturer Pulse
Catalog Modular Connectors
Description CONN JACK 1PORT 1000 BASE-T PCB / 1 Port RJ45Through Hole 10/100/1000 Base-T, AutoMDIX
Datasheet
JK0-0016NL Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Modular Connectors - Modular Connector Jacks With Magnetics
Mfr Pulse
Series PULSEJACK™ JK
Package Bulk
Product Status Obsolete
Connector Type RJ45
Number of Ports 1
Number of Rows 1
Applications 10/100/1000 Base-T, AutoMDIX
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Height Above Board 0.546" (13.87mm)
LED Color Yellow, Green - Green
Number of Cores per Jack 8
Shielding Shielded, EMI Finger
Features Board Guide
Tab Direction Up
Contact Material Phosphor Bronze
Contact Finish Gold
Temperature Range - Operating 0°C ~ 70°C
Contact Finish Thickness 15.0µin (0.38µm)
Shield Material Brass
Housing Material Thermoplastic
Standard Package 40 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 848965-JK0-0016NL
Ultra Librarian 3D Model Ultra Librarian JK0-0016NL CAD Model

Description

The PULSEJACK™ JK 848965-JK0-0016NL is a modular connector jack with magnetics designed for various applications.

  • Features: Board Guide
  • Orientation: 90° Angle
  • Connector Type: RJ45
  • Number of Rows: Single
  • Termination: Solder
  • Contact Finish: Gold
  • Contact Finish Thickness: 15.0μin (0.38μm)
  • Housing Material: Thermoplastic
  • Shielding: Yes, with EMI Finger
  • Height Above Board: 0.546" (13.87mm)
  • Application: 10/100/1000 Base-T, AutoMDIX
  • Mounting Type: Through Hole
  • LED Color: Yellow, Green
  • Number of Cores per Jack: 8
  • Shield Material: Brass
  • Operating Temperature: 0°C to 70°C
  • Packaging: Bulk
  • Standard Package: 40 pcs
