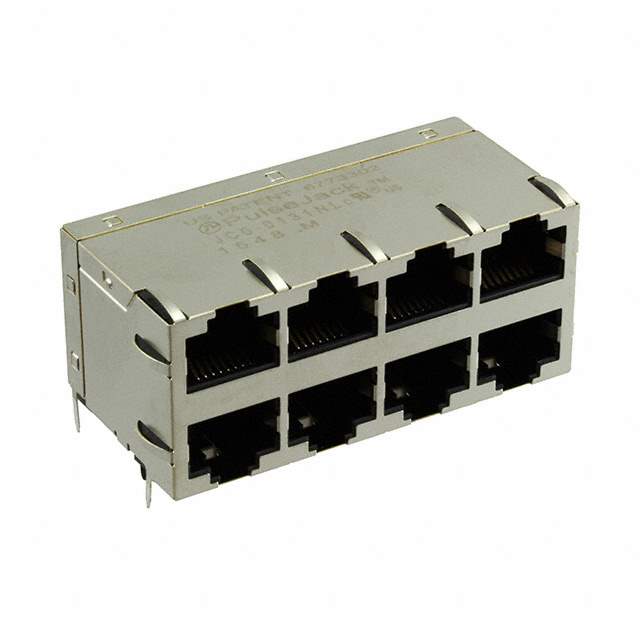

JC0-0131NL Real Image
Same model may have multiple batches, images only for reference.

JC0-0131NL

Part No JC0-0131NL
Manufacturer Pulse
Catalog Modular Connectors
Description CONN JACK 8PORT 1000 BASE-T PCB / 8 Port RJ45Through Hole 10/100/1000 Base-T, AutoMDIX
Datasheet
JC0-0131NL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Modular Connectors>Modular Connector Jacks With Magnetics
Manufacturer Pulse Electronics
Packaging Tray
Connector Type RJ45
Number of Ports 8
Number of Rows 2
Applications 10/100/1000 Base-T, AutoMDIX
Mounting Through Hole
Orientation 90° Angle (Right)
Termination Solder
Height Above Board 1.005" (25.53mm)
LED Color Does Not Contain LED
Number of Cores per Jack 8
Shielding Shielded, EMI Finger
Features Board Guide
Tab Direction Up and Down
Contact Material Phosphor Bronze
Contact Finish Gold
Temperature Range - Operating 0°C ~ 70°C
Contact Finish Thickness 30.0µin (0.76µm)
Shield Material Brass
Housing Material Thermoplastic
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number JC0-0131NL-ND,-JC0-0131NL,553-3259
Standard Package 8
Win Source Part Number 1333871-JC0-0131NL
Ultra Librarian 3D Model Ultra Librarian JC0-0131NL CAD Model

Description

The Pulse Electronics 1333871-JC0-0131NL is a shielded RJ45 modular connector jack with magnetics.

  • Orientation: 90-degree angle (right)
  • Mounting: Through-hole
  • Ports: 8
  • Rows: 2
  • Cores per Jack: 8
  • Applications: 10/100/1000 Base-T and AutoMDIX
  • Contact Material: Phosphor bronze
  • Contact Finish Thickness: 30.0μin (0.76μm)
  • Height Above Board: 1.005" (25.53mm)
  • Shielding: EMI finger
  • Housing Material: Thermoplastic
  • RoHS Compliant: Yes
  • Temperature Range: 0°C to 70°C
