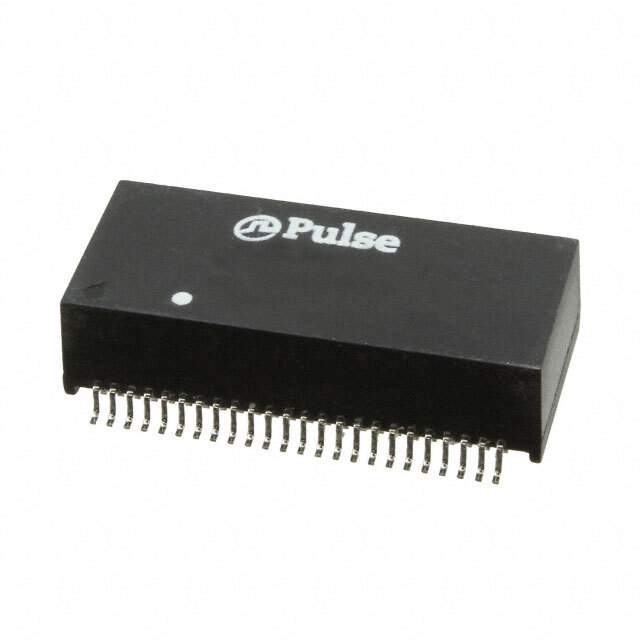

HX6101NL Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Transformers>Pulse Transformers
Mfr Pulse Electronics Network
Package Tube
Transformer Type LAN 10/100/1000 Base-T
Inductance 120µH, 350µH
Mounting SMD (SMT)
Dimension 1.095" L x 0.480" W (27.81mm x 12.19mm)
Height - Seated (Max) 0.285" (7.24mm)
Temperature Range - Operating -40°C ~ 85°C
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.31.2000
Other Names HX6101NL-ND,-HX6101NL,553-3252-5
Standard Package 15
Win Source Part Number 1028107-HX6101NL
Ultra Librarian 3D Model Ultra Librarian HX6101NL CAD Model

Description

The HX6101NL is a LAN 10/100/1000 Base-T pulse transformer from Pulse Electronics Network.

  • Inductance: 120μH, 350μH
  • Height: 0.285" (7.24mm)
  • Application: Pulse Transformer
  • Package: Tube
