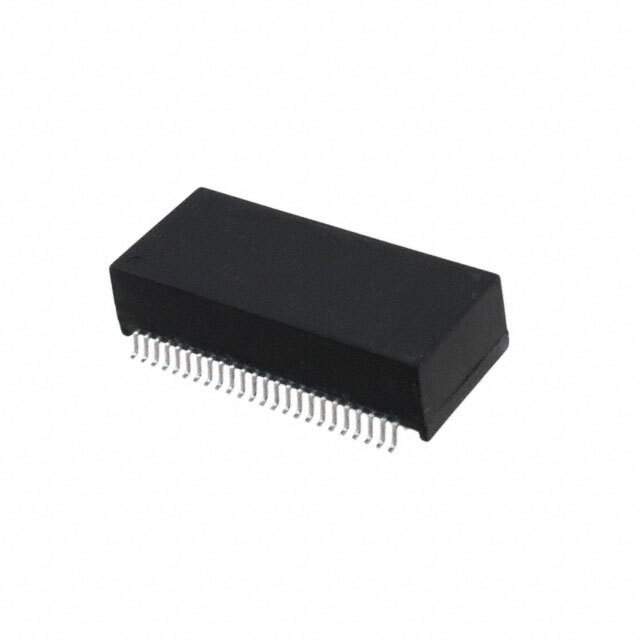

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Manufacturer Pulse Electronics Network
Packaging Tube
Transformer Type Isolation and Data Interface (Encapsulated)
Mounting Style SMD
Dimension 1.095" L x 0.480" W (27.81mm x 12.19mm)
Height - Seated (Maximum) 0.295" (7.49mm)
Temperature Range - Operating 0°C ~ 70°C
Weight 0.14 oz (3.99 g)
Manufacturer Pack Quantity 15
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 811116-H6080NL
Ultra Librarian 3D Model Ultra Librarian H6080NL CAD Model

Description

The Pulse Electronics Network 811116-H6080NL is an isolation and data interface transformer designed for SMD mounting.

  • Encapsulation: Encapsulated
  • Weight: 0.14 oz
  • Temperature Range: 0°C to 70°C
  • Dimensions: 1.095" L x 0.480" W (27.81mm x 12.19mm)
  • Seated Height: 0.295" (7.49mm)
  • Manufacturer Pack Quantity: 15
  • MSL Level: 1 (Unlimited)
  • ET (Volt-Time): -
