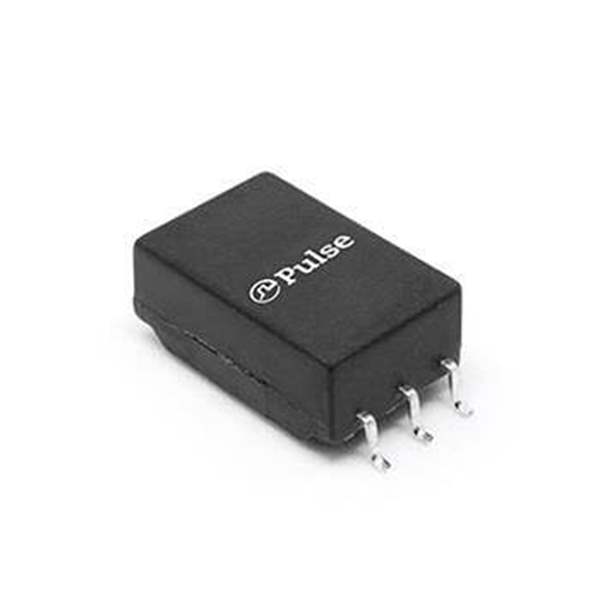

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Manufacturer Pulse
Product Signal Transformers
Termination Style SMD/SMT
Inductance 150 uH
Isolation Voltage 4.6 kV
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 125 C
Number of Channels 1 Channel
Application Automotive
Length 7.62 mm
Width 6.73 mm
Height 5.72 mm
Series BMS
Qualification AEC-Q200
Packaging Tube
Maximum DC Resistance 450 mOhms
Brand Pulse Electronics
Product Type Audio & Signal Transformers
Standard Pack Qty 40
Subcategory Transformers
Ultra Librarian 3D Model Ultra Librarian HM2106NL CAD Model
