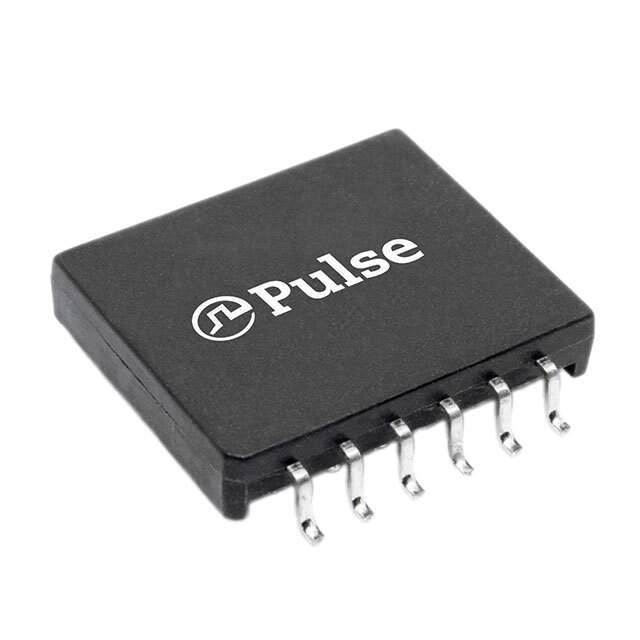

HM2112ZNLT Real Image
Same model may have multiple batches, images only for reference.

HM2112ZNLT

Part No HM2112ZNLT
Manufacturer Pulse
Catalog Pulse Transformers
Description XFMR CMC MODULE AECQ BATT MNGT / 150µH, 450µH Pulse Transformer 1:1 Surface Mount
Datasheet
HM2112ZNLT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers - Pulse Transformers
Mfr Pulse Electronics
Package Tape & Reel
Inductance 150µH, 450µH
Mounting Type Surface Mount
Size / Dimension 0.579" L x 0.478" W (14.70mm x 12.15mm)
Height - Seated (Max) 0.136" (3.45mm)
Temperature Range - Operating -40°C ~ 125°C
Standard Package 600
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 1342729-HM2112ZNLT
Ultra Librarian 3D Model Ultra Librarian HM2112ZNLT CAD Model

Description

The Pulse Electronics HM2112ZNLT is a pulse transformer that is designed for use in a variety of applications.

  • Size: 0.579" L x 0.478" W (14.70mm x 12.15mm)
  • Height: 0.136" (3.45mm)
  • Inductance: 150µH and 450µH
  • Mounting Type: Surface Mount
  • Operating Temperature: -40°C to 125°C
  • REACH: Unaffected
  • Package: Tape and Reel
  • Standard Package: 600 units
