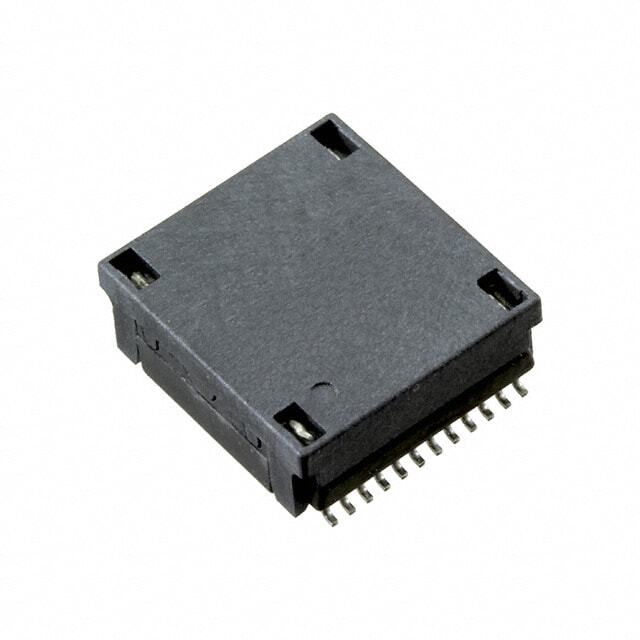

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Transformers - Pulse Transformers
Mfr Pulse
Package Tape & Reel
Product Status Active
Transformer Type LAN 10G Base-T
Inductance 120µH
Mounting Type Surface Mount
Size / Dimension 0.539" L x 0.591" W (13.70mm x 15.00mm)
Height - Seated (Max) 0.230" (5.85mm)
Temperature Range - Operating 0°C ~ 70°C
Standard Package 300 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 873177-H7028FNLT
Ultra Librarian 3D Model Ultra Librarian H7028FNLT CAD Model

Description

The 873177-H7028FNLT is a pulse transformer designed for LAN 10G Base-T applications.

  • Manufacturer: Pulse
  • Application: LAN 10G Base-T
  • Package: Tape & Reel
  • Size: 0.539" L x 0.591" W (13.70mm x 15.00mm)
  • Height: 0.230" (5.85mm)
  • Mounting: Surface Mount
  • Operating Temperature: 0°C to 70°C
  • Inductance: 120μH
  • Standard Package: 300 pcs
  • ECCN: EAR99
  • REACH: Unaffected
  • HTSUS Code: 8504.31.2000
  • Product Status: Active
