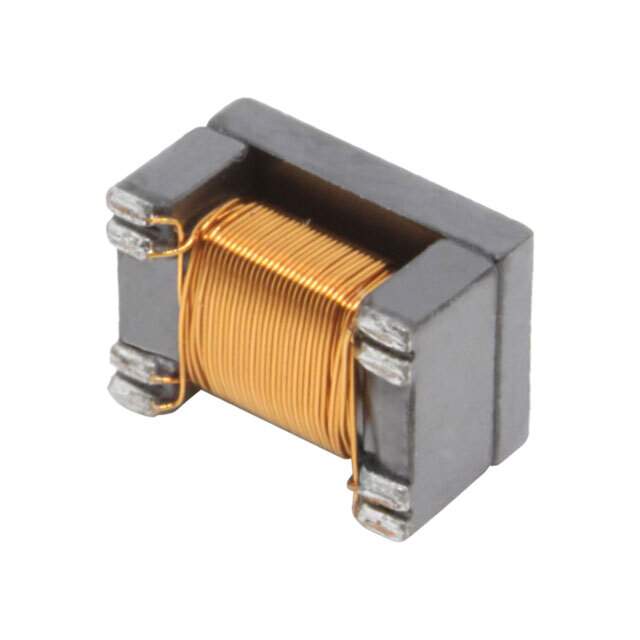

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Transformers
Family Audio Transformers
Manufacturer Tamura
Series TTC
Transformer Type Data/Voice Coupling
Impedance 600 Primary, 301 Secondary
Insertion Loss 3.25dB
Mounting Style Through Hole
Size / Dimension 22.50mm L x 23.10mm W
Height - Seated (Max) 13.80mm
Termination Style PC Pin
Win Source Part Number 212623-TC5000
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian TC5000 CAD Model

Description

This electronic component is a transformer manufactured by Tamura.

  • Series: TTC
  • Type: Data/voice coupling transformer
  • Impedance: 600 Primary and 301 Secondary
  • Insertion Loss: 3.25dB
  • Mounting Style: Through hole
  • Termination: PC pin
  • Supply and Demand Status: Limited
  • Popularity: Medium
