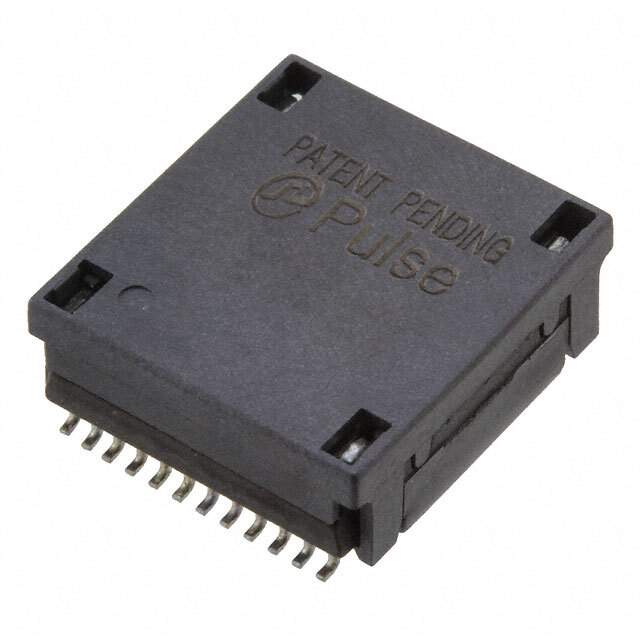

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Transformers
Manufacturer Pulse Electronics Network
Packaging Reel
Transformer Type LAN 10G Base-T
Inductance 200μH
Mounting Style SMD
Parts Dimension 0.539" L x 0.591" W (13.70mm x 15.00mm)
Height - Seated (Maximum) 0.230" (5.85mm)
Temperature Range - Operating 0°C ~ 70°C
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 731098-H7019FNLT
Popularity Low
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian H7019FNLT CAD Model

Description

The Pulse Electronics Network LAN 10G Base-T transformer type is a product of Pulse Electronics Network.

  • Inductance: 200μH
  • Operating Temperature Range: 0°C to 70°C
  • Mounting Type: SMD
  • Packaging: Reel
  • Height: 0.230" (5.85mm)
  • Category: Transformers
