Same model may have multiple batches, images only for reference.

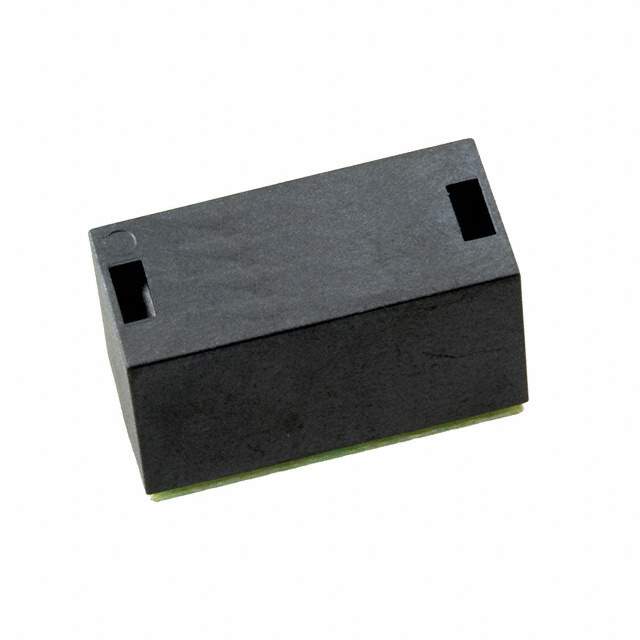

H5610NLT Real Image
Same model may have multiple batches, images only for reference.

H5610NLT

Part No H5610NLT
Manufacturer Pulse
Catalog Pulse Transformers
Description PULSE XFMR 1CT:1CT TX 1CT:1CT RX / 350µH LAN 10/100/1000 Base-T Pulse Transformer 1CT:1CT Transmitter, 1CT:1CT Receiver Surface Mount
Datasheet
H5610NLT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers>Pulse Transformers
Mfr Pulse Electronics Network
Package Tape & Reel
Transformer Type LAN 10/100/1000 Base-T
Inductance 350µH
Mounting SMD (SMT)
Dimension 0.680" L x 0.310" W (17.27mm x 7.87mm)
Height - Seated (Max) 0.440" (11.18mm)
Temperature Range - Operating 0°C ~ 70°C
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.31.2000
Other Names 553-2741-6,553-2741-2,553-2741-1,-H5610NLT,H5610NLT-ND
Standard Package 300
Win Source Part Number 1061572-H5610NLT
Ultra Librarian 3D Model Ultra Librarian H5610NLT CAD Model

Description

The H5610NLT series LAN 10/100/1000 Base-T pulse transformers are designed for use in Ethernet applications and are supplied by Pulse Electronics Network.

  • Packaging: Tape and reel
  • Inductance: 350 µH
  • Height: 0.440 inches (11.18mm)
  • Standard Package: 300
  • Mounting: SMD (SMT)
  • Operating Temperature Range: 0°C to 70°C
