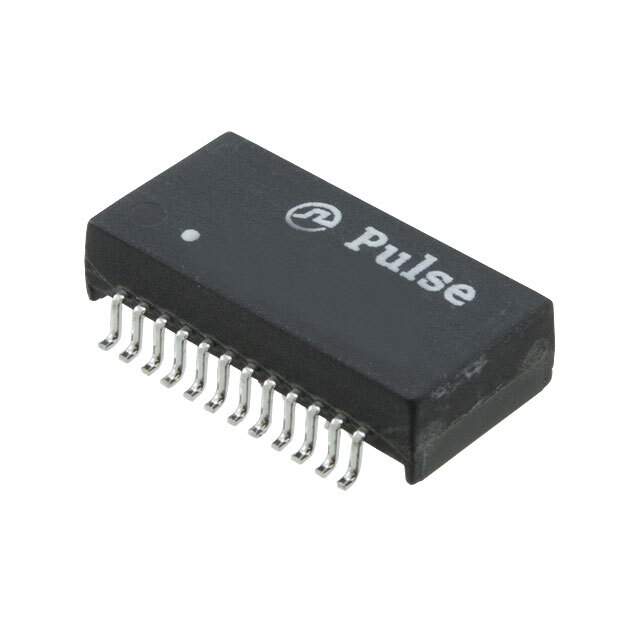

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Transformers
Manufacturer Pulse Electronics Network
Packaging Reel
Transformer Type Isolation and Data Interface (Encapsulated)
Mounting Style SMD
Parts Dimension 0.600" L x 0.300" W (15.24mm x 7.62mm)
Height - Seated (Maximum) 0.163" (4.14mm)
Temperature Range - Operating 0°C ~ 70°C
Weight 0.02 oz (0.57 g)
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 731094-H5084NLT
Popularity Low
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian H5084NLT CAD Model

Description

The Pulse Electronics Network transformer with part number 731094-H5084NLT is an isolation and data interface (encapsulated) transformer.

  • Packaging: Reel
  • Mounting Style: SMD
  • Inductance: No
  • Weight: 0.02 oz (0.57 g)
  • Temperature Range: 0°C ~ 70°C
  • Manufacturer: Pulse Electronics Network
  • Height (Seated): 0.163" (4.14mm)
  • Supply and Demand Status: Limited
  • Manufacturer Pack Quantity: 1
  • MSL Level: 1 (Unlimited)
  • Parts Dimension: 0.600" L x 0.300" W (15.24mm x 7.62mm)
