H5009NL
Same model may have multiple batches, images only for reference.

H5009NL

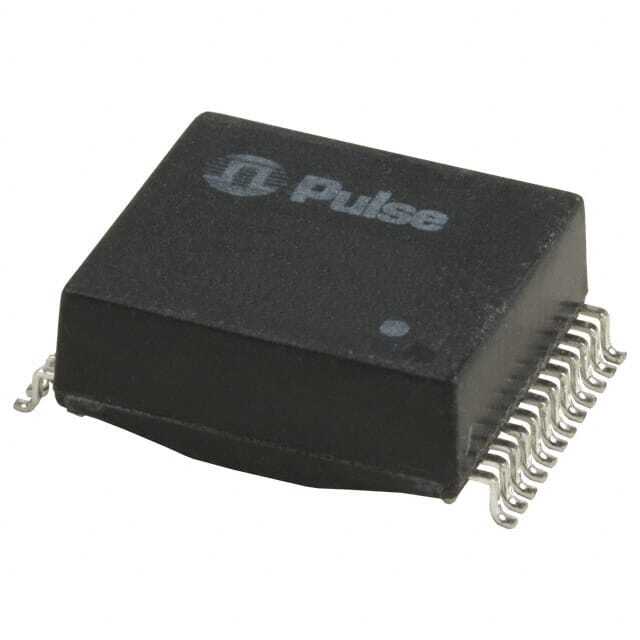

Part No H5009NL
Manufacturer Pulse
Catalog Pulse Transformers
Description MODULE XFORMR GIGABIT SINGLE LAN / Isolation and Data Interface (Encapsulated) Pulse Transformer 1:1 Surface Mount
Datasheet
H5009NL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers - Pulse Transformers
Mfr Pulse
Package Tube
Product Status Active
Transformer Type Isolation and Data Interface (Encapsulated)
Mounting Type Surface Mount
Size / Dimension 0.537" L x 0.600" W (13.64mm x 15.24mm)
Height - Seated (Max) 0.235" (5.97mm)
Temperature Range - Operating 0°C ~ 70°C
Weight 0.06 oz (1.71 g)
Standard Package 35 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 919949-H5009NL
Ultra Librarian 3D Model Ultra Librarian H5009NL CAD Model

Description

The 919949-H5009NL is a pulse transformer used for isolation and data interface applications. It is a surface mount transformer with a size of 0.537" L x 0.600" W (13.64mm x 15.24mm).

  • Inductance: Not specified
  • Size: 0.537" L x 0.600" W (13.64mm x 15.24mm)
  • Transformer Type: Pulse Transformer
  • Mounting Type: Surface Mount
  • Maximum Seated Height: 0.235" (5.97mm)
  • Package: Tube
  • Standard Package: 35 pieces
  • Weight: 0.06 oz (1.71 g)
  • Operating Temperature Range: 0°C to 70°C
  • ECCN: EAR99
  • REACH: Unaffected
