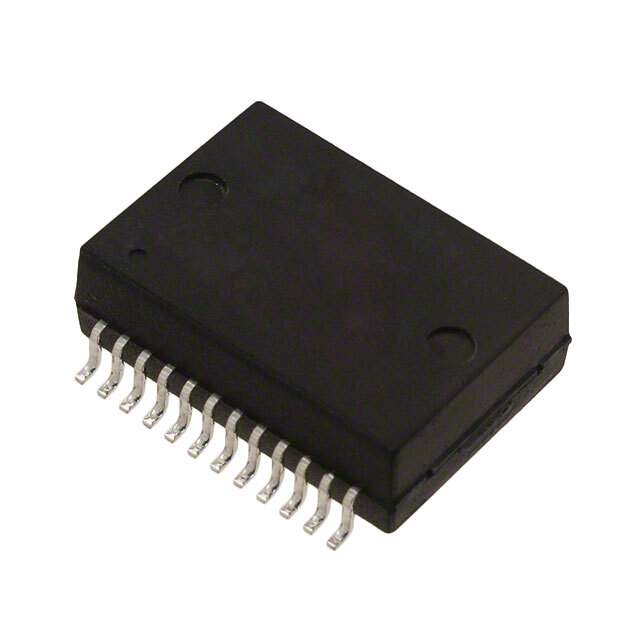

The H5004NLT is a common mode choke manufactured by Pulse Electronics. This component is primarily used for suppressing common mode noise in various electronic devices. The 'NLT' suffix indicates that the component is lead-free and RoHS compliant, adhering to environmental regulations.

Applications

• Power supply EMI filtering
• USB interface noise reduction
• Ethernet port noise suppression
• Data line noise filtering
• Audio equipment noise reduction

Features

• Surface mount technology: Enables efficient PCB assembly and space saving.
• High common mode impedance: Effectively attenuates common mode noise signals.
• Low differential mode impedance: Minimizes signal degradation in differential signal transmission.
• RoHS compliant: Complies with environmental standards, ensuring lead-free construction.
• Compact size: Ideal for space-constrained applications.

Benefits

• Improved EMI performance: Reduces electromagnetic interference, ensuring compliance with regulatory standards.
• Enhanced signal integrity: Minimizes noise and distortion, resulting in clearer and more reliable signal transmission.
• Reduced system noise: Prevents noise propagation throughout the circuit.
• Increased system reliability: Protects sensitive components from noise-induced damage.
• Simplified design: Provides a convenient solution for common mode noise filtering.

Additional Details

The H5004NLT typically utilizes a ferrite core material to achieve high permeability and effective noise suppression. It is designed to operate efficiently over a wide frequency range. The specific inductance and impedance values are optimized to block common mode noise while minimally affecting differential signals, making it suitable for high-speed data applications. The component is commonly found in network interfaces, power supplies, and other applications where EMI compliance and signal integrity are crucial.
