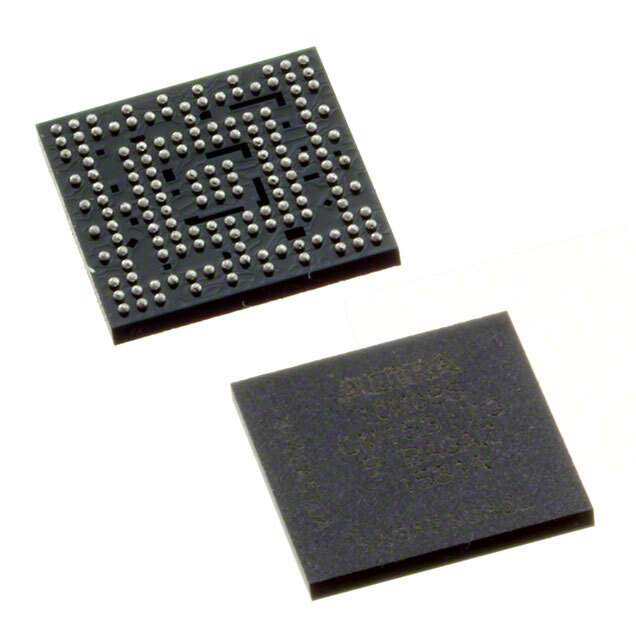

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded - FPGAs (Field Programmable Gate Array)
Mfr Intel
Series MAX® 10
Package Tray
Number of LABs/CLBs 125
Number of Logic Elements/Cells 2000
Total RAM Bits 110592
Number of I/O 112
Voltage - Supply 2.85V ~ 3.465V
Mounting SMD (SMT)
Temperature Range - Operating 0°C ~ 85°C (TJ)
Package / Case 153-VFBGA
Supplier Device Package 153-MBGA (8x8)
Other Names 10M02SCM153C8G,544-3570,965253
Standard Package 348
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991D
HTSUS 8542.39.0001
Win Source Part Number 1265069-10M02SCM153C8G
Ultra Librarian 3D Model Ultra Librarian 10M02SCM153C8G CAD Model

Description

The 1265069-10M02SCM153C8G is a Field Programmable Gate Array (FPGA) from the MAX 10 series of Integrated Circuits (ICs).

  • Package: Tray
  • Standard Package: 348
  • Mountable: SMD (SMT)
  • I/O: 112
  • LABs/CLBs: 125
  • Logic Elements/Cells: 2000
  • Total RAM: 110592 bits
  • Voltage Supply: 2.85V ~ 3.465V
  • Package/Case: 153-VFBGA
  • Supplier Device Package: 153-MBGA (8x8)
  • Temperature Range: 0°C ~ 85°C (TJ)
  • ECCN: 3A991D
  • REACH: Unaffected
  • HTSUS: 8542.39.0001
  • Manufacturer: Intel
