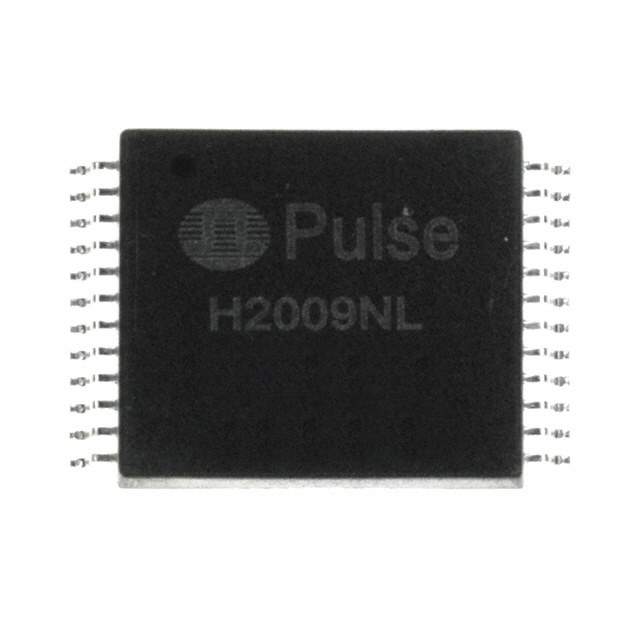

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Transformers
Manufacturer Pulse Electronics Corporation
Packaging Reel - TR
Status Active
Transformer Type Isolation and Data Interface (Encapsulated)
Mounting SMD (SMT)
Height - Seated (Max) 0.251" (6.37mm)
Weight 0.06 oz (1.71g)
Win Source Part Number 1042248-H2009NLT
Family Name H2009
ECCN EAR99
Country of Origin China
Estimated EOL Date 2026
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian H2009NLT CAD Model

Description

The H2009NLT is an isolation and data interface transformer manufactured by Pulse Electronics Corporation.

  • Height: 0.251" (6.37mm)
  • Weight: 0.06 oz (1.71g)
  • Mounting: SMD (SMT)
  • Packaging: Reel - TR
  • Supply and Demand Status: Balanced
  • Type: Common-used part
  • Estimated EOL Date: 2026
