Same model may have multiple batches, images only for reference.

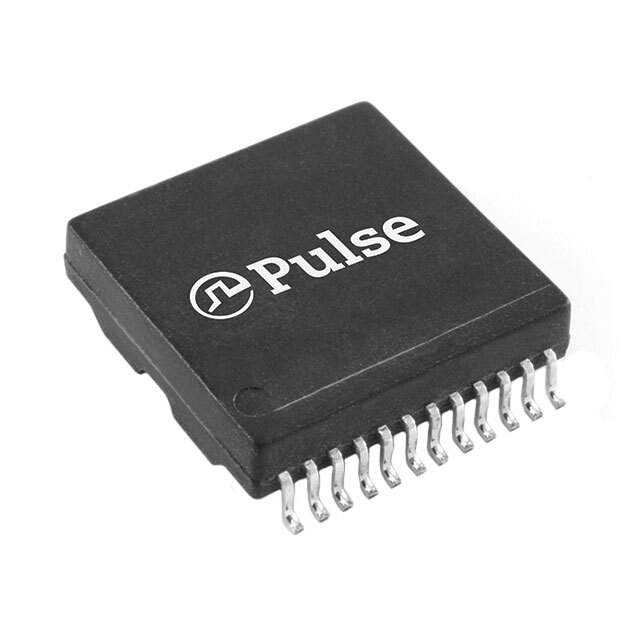

H1270NL Real Image
Same model may have multiple batches, images only for reference.

H1270NL

Part No H1270NL
Manufacturer Pulse
Catalog Pulse Transformers
Description 10/100BASE-TX DUAL PORT TRANSFORMER MODULES | MODULE XFRMR DUAL ETHER LAN 24P
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Transformers
Manufacturer Pulse Electronics Network
Packaging Tube
Transformer Type LAN
Mounting Style SMD
Parts Dimension 0.515" L x 0.500" W (13.08mm x 12.70mm)
Height - Seated (Maximum) 0.155" (3.93mm)
Temperature Range - Operating 0°C ~ 70°C
Weight 0.05 oz (1.42g)
Manufacturer Pack Quantity 35
MSL Level 1 (Unlimited)
Win Source Part Number 1178234-H1270NL
Manufacturer Homepage www.pulseeng.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian H1270NL CAD Model

Description

The H1270NL Network transformer 1178234-H1270NL is a medium popularity component in the transformer category from Pulse Electronics.

  • Mounting Style: SMD
  • Transformer Type: LAN Transformer
  • Operating Temperature: 0°C to 70°C
  • Manufacturer Pack Quantity: 35
  • MSL Level: 1 (Unlimited)
  • Dimensions: 0.515" L x 0.500" W (13.08mm x 12.70mm)
