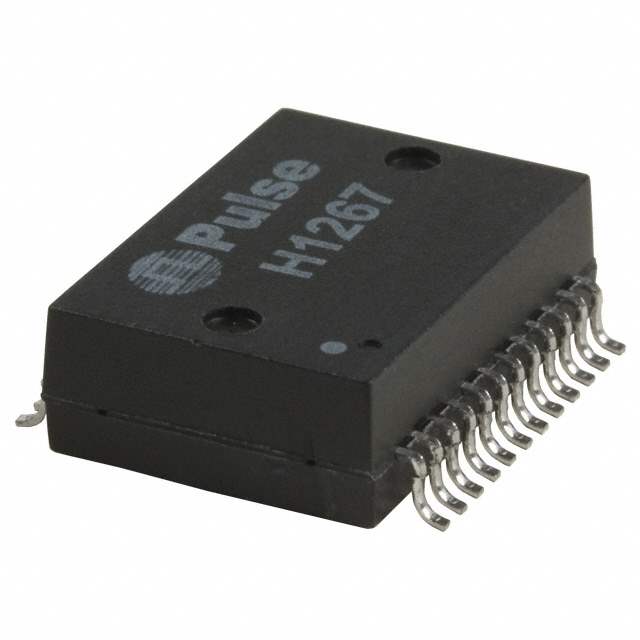

H1267NL Real Image
Same model may have multiple batches, images only for reference.

H1267NL

Part No H1267NL
Manufacturer Pulse
Catalog Pulse Transformers
Description XFRMR 1PORT 1:1 10/100 SMD
Datasheet
H1267NL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Transformers
Manufacturer Pulse Electronics Corporation
Packaging Reel - TR
Status Active
Transformer Type Isolation and Data Interface (Encapsulated)
Mounting SMD (SMT)
Height - Seated (Max) 0.227" (5.76mm)
Weight 0.1 oz (2.85g)
Win Source Part Number 141276-H1267NL
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian H1267NL CAD Model

Description

The 141276-H1267NL transformer manufactured by Pulse Electronics Corporation is an isolation and data interface transformer. It comes in reel - TR packaging and is SMD (SMT) mountable. The maximum seated height of the transformer is 0.227" (5.76mm), and it weighs 0.1 oz (2.85g). The transformer is part of the Transformers category and is currently active in the market with medium popularity. and the supply and demand status is limited.
