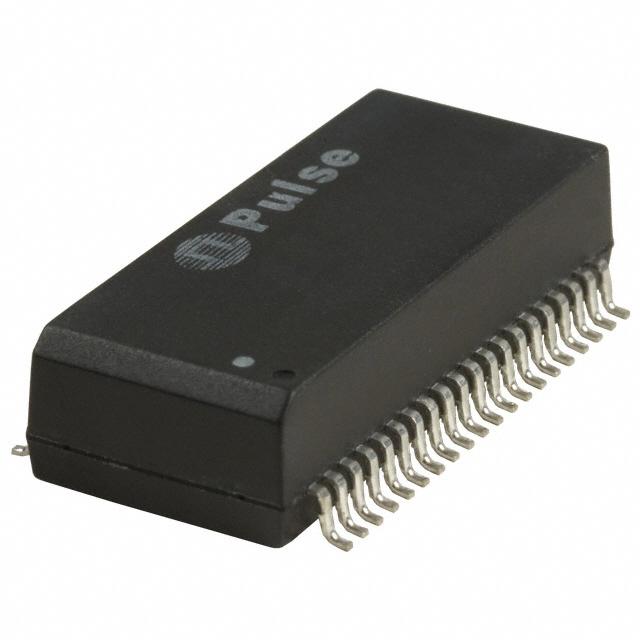

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Transformers - Pulse Transformers
Mfr Pulse
Package Tube
Product Status Obsolete
Mounting Type Surface Mount
Size / Dimension 1.125" L x 0.480" W (28.58mm x 12.19mm)
Height - Seated (Max) 0.290" (7.36mm)
Temperature Range - Operating 0°C ~ 70°C
Standard Package 15 pcs
Moisture Sensitivity Level (MSL) 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 139657-H1140NL
Ultra Librarian 3D Model Ultra Librarian H1140NL CAD Model

Description

The 139657-H1140NL is a pulse transformer designed for various applications. It comes in a tube package with a size of 1.125" L x 0.480" W. The transformer has a maximum seated height of 0.290". The standard package includes 15 pieces. It is a surface mount component that operates in a temperature range of 0°C to 70°C. The ECCN status of this product is EAR99 and it is unaffected by REACH regulations. The moisture sensitivity level (MSL) is 3 (168 hours). The HTSUS code for this product is 8504.31.2000.
