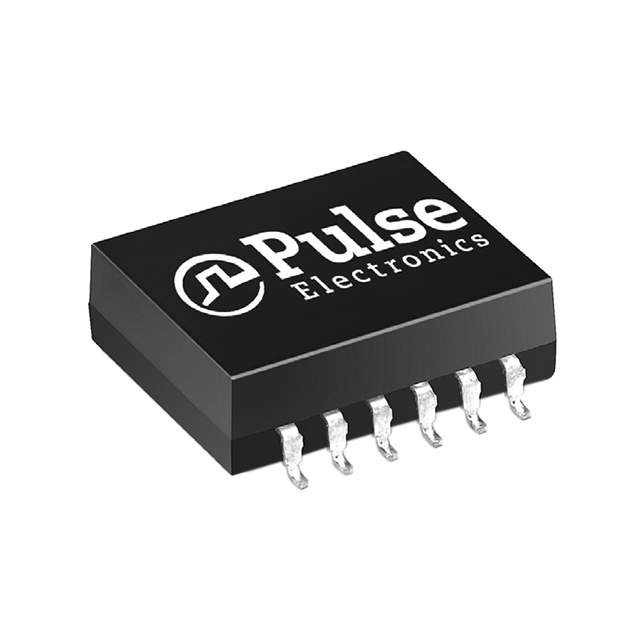

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Transformers
Manufacturer Pulse Electronics Network
Packaging Tape and Reel
Transformer Type Isolation and Data Interface (Encapsulated)
Mounting Style SMD
Parts Dimension 0.583" L x 0.460" W (14.81mm x 11.68mm)
Height - Seated (Maximum) 0.202" (5.13mm)
Temperature Range - Operating 0°C ~ 70°C
Weight 0.06 oz (1.71g)
Manufacturer Pack Quantity 350
MSL Level 3 (168 Hours)
Win Source Part Number 1178126-H1126NLT
Manufacturer Homepage www.pulseeng.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian H1126NLT CAD Model

Description

The Pulse Electronics Network 1178126-H1126NLT is an isolation and data interface (encapsulated) transformer.

  • Mounting Style: SMD
  • Packaging: tape and reel
  • Operating Temperature: 0°C to 70°C
  • Manufacturer Pack Quantity: 350
  • MSL Level: 3 (168 Hours)
  • Height: 0.202" (5.13mm)
  • Weight: 0.06 oz (1.71g)
