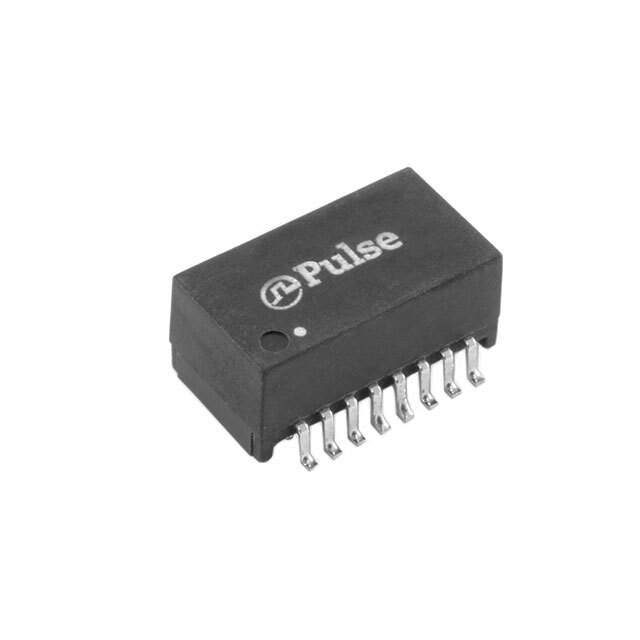

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Transformers>Pulse Transformers
Mfr Pulse Electronics Network
Package Tape & Reel (TR)
Transformer Type Isolation and Data Interface (Encapsulated)
Inductance 20µH, 100µH
Mounting SMD (SMT)
Dimension 0.500" L x 0.280" W (12.70mm x 7.11mm)
Height - Seated (Max) 0.245" (6.22mm)
Temperature Range - Operating 0°C ~ 70°C
Weight 0.03 oz (0.85 g)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.31.2000
Standard Package 600
Win Source Part Number 1203057-E2466NLT
Ultra Librarian 3D Model Ultra Librarian E2466NLT CAD Model

Description

The 1203057-E2466NLT transformer is an encapsulated isolation and data interface pulse transformer that is ideal for use in various electronic devices.

  • Type: Encapsulated Isolation and Data Interface Pulse Transformer
  • Package: Tape and Reel
  • Height: 0.245 inches (Seated)
  • Inductance: 20μH or 100μH
  • Operating Temperature: 0°C to 70°C
  • Weight: 0.03 ounces
  • Mounting: SMD (SMT)
  • Standard Package: 600
