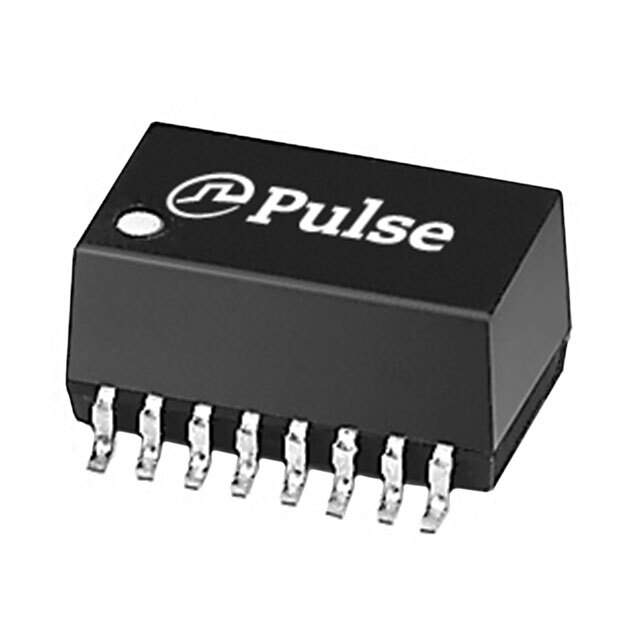

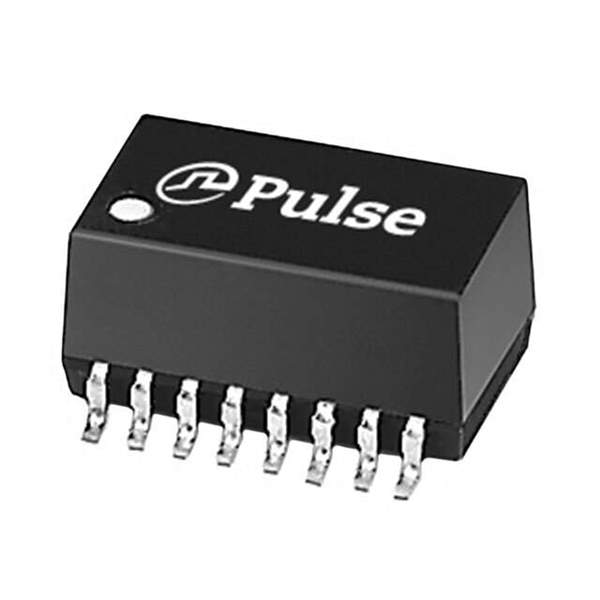

23Z356SMQNL Real Image
Same model may have multiple batches, images only for reference.

23Z356SMQNL

Part No 23Z356SMQNL
Manufacturer Pulse
Catalog Pulse Transformers
Description TRANSFORMER 10BASE-T LAN 16SOIC / 200µH Isolation and Data Interface (Encapsulated) Pulse Transformer 1CT:1.414CT Transmitter, 1CT:1CT Receiver Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers>Pulse Transformers
Mfr Pulse Electronics Network
Package Tube
Transformer Type Isolation and Data Interface (Encapsulated)
Inductance 200µH
Mounting SMD (SMT)
Dimension 0.450" L x 0.265" W (11.43mm x 6.73mm)
Height - Seated (Max) 0.215" (5.46mm)
Temperature Range - Operating 0°C ~ 70°C
Weight 0.03 oz (0.85 g)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.31.2000
Standard Package 45
Win Source Part Number 1230890-23Z356SMQNL
Ultra Librarian 3D Model Ultra Librarian 23Z356SMQNL CAD Model

Description

The Pulse 1230890-23Z356SMQNL is a transformer belonging to the Pulse Transformers category.

  • Package: Tube
  • Transformer Type: Isolation and Data Interface (Encapsulated)
  • Inductance: 200µH
  • Height: 0.215" (5.46mm)
  • Standard Package: 45
  • Mounting Type: SMD (SMT)
  • Weight: 0.03 oz (0.85 g)
  • Operating Temperature: 0°C ~ 70°C
  • Dimension: 0.450" L x 0.265" W (11.43mm x 6.73mm)
  • MSL Level: 1 (Unlimited)
  • ET (Volt-Time): No
  • HTSUS: 8504.31.2000
